Gymflex Free Weight

Gymflex Free Weight is a high-performance floor for weightlifting and strength zones, delivering shock absorption, noise reduction and durability while protecting both athletes and equipment.

Made for Fitness Studio Free Weights

Floor heights: 104–156mm
Acoustic reduction: 29 dB
Static load: 650 kg
Club components: 10

In detail

About Gymflex Free Weight

Our Free Weights floor is a specialised High Density, impact Absorbing, Rubber floor system designed to withstand the unique stresses of heavy lifting and impacts of free weights, whilst having excellent Acoustic isolation properties.

This system is built using our Rubberflex shock absorbing cradle, with an extra strength layer to protect both the gym structure and the equipment, whilst also ensuring the safety & comfort of the lifters.

Specification

Floor Finish	Recycled Rubber tile 40mm
Colour	Black/15% Grey Fleck
Structural Layer	18mm T&G Plywood
Usage	Fitness Studio/Free Weights
Cradles	New Era Rubberflex*
Flexjoists	36 or 48mm Flexjoists**
Floor Heights	104–156mm

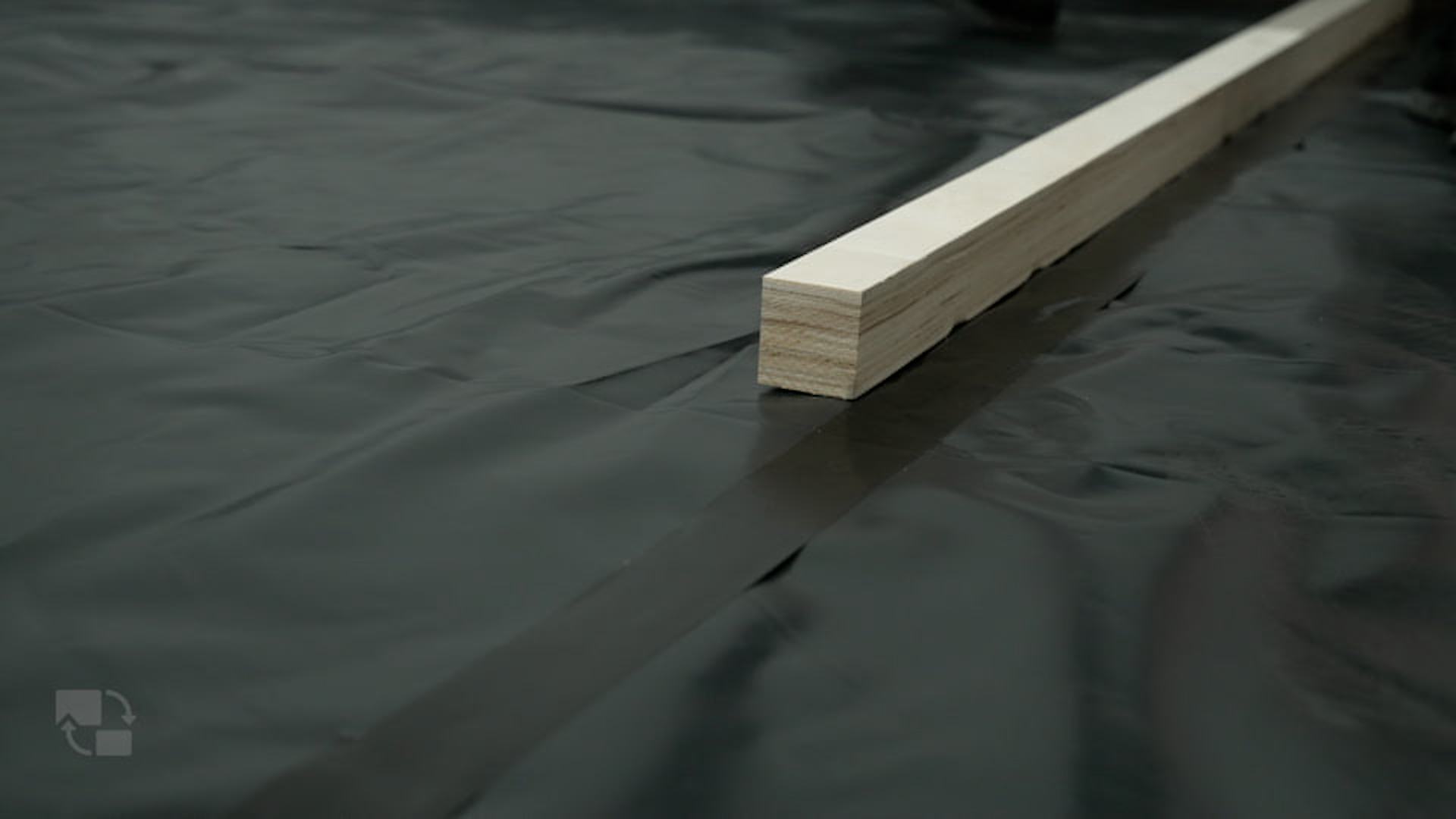

Flexjoist Centres	150mm
Cradle Centres (Along Flexjoist)	300mm
Acoustic Reduction	29 dB (Minimum)
Loading	650kg Static load & 400kg Point load
Impact Load	80KG from Free-weights

*Cradle Calculations: 17.0 per m² (36mm, 48, 63 Flexjoist)

**Flexjoist Calculations: 4.0 per m² (36mm,48 Flexjoist) 3.4 per m² (63mm Flexjoist)

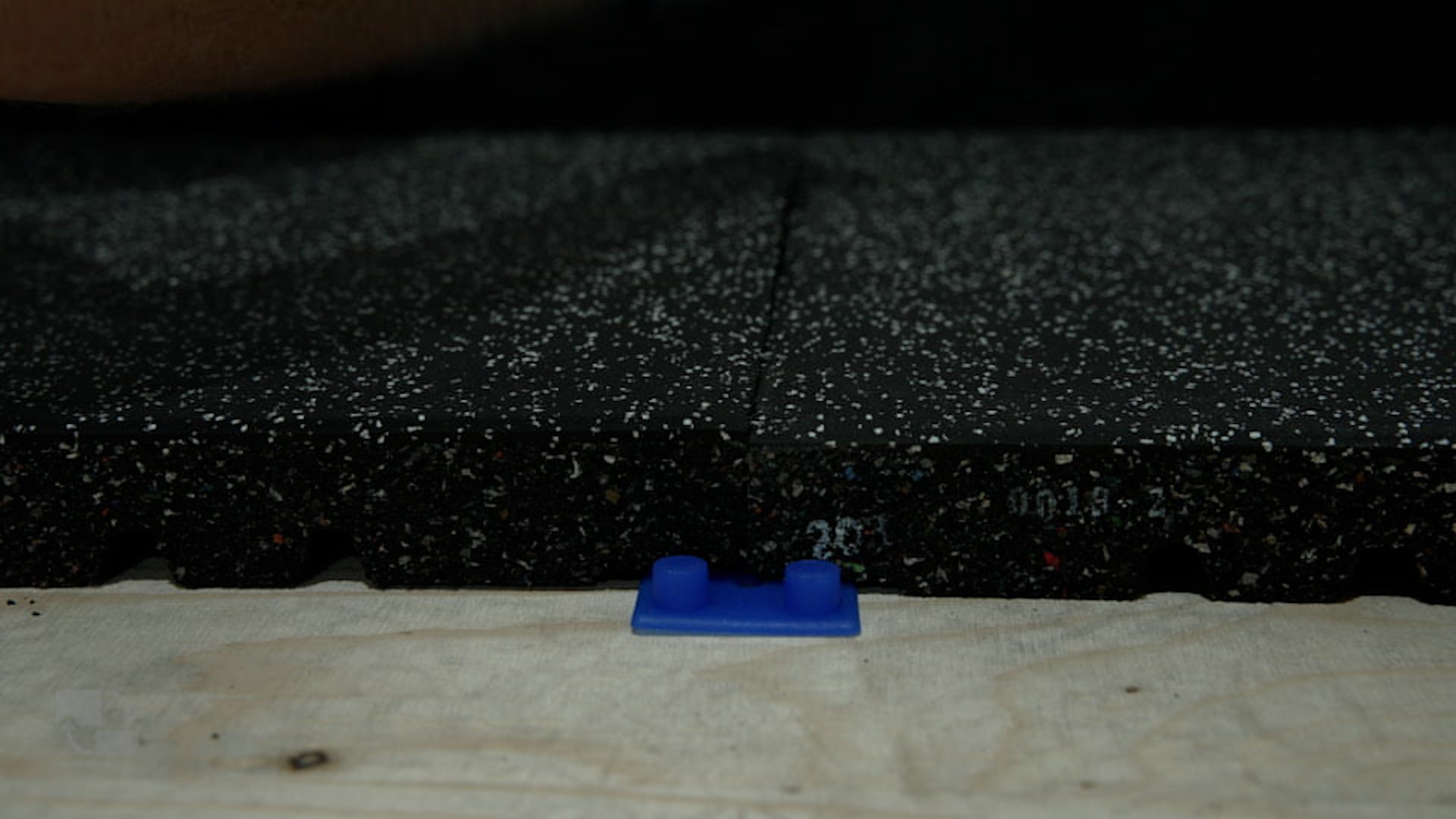

Recycled Interlocking Rubber Tile 40mm
Adjustable heights 104-156mm
Acoustic Isolation
Ideal for free weights, Machines and medium impact use
Excellent shock absorption
Impact up to 80KG (height of 1.5m)

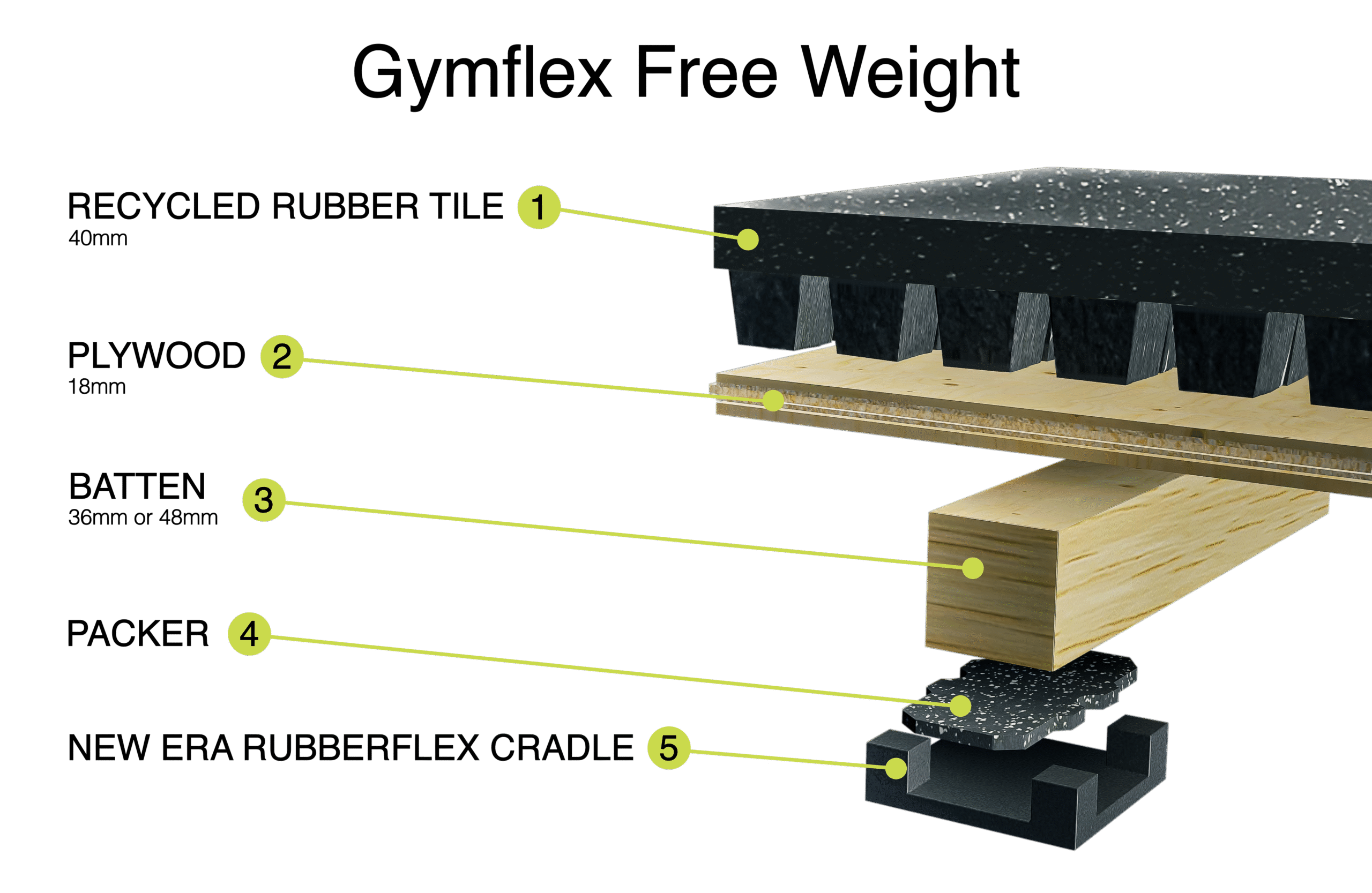

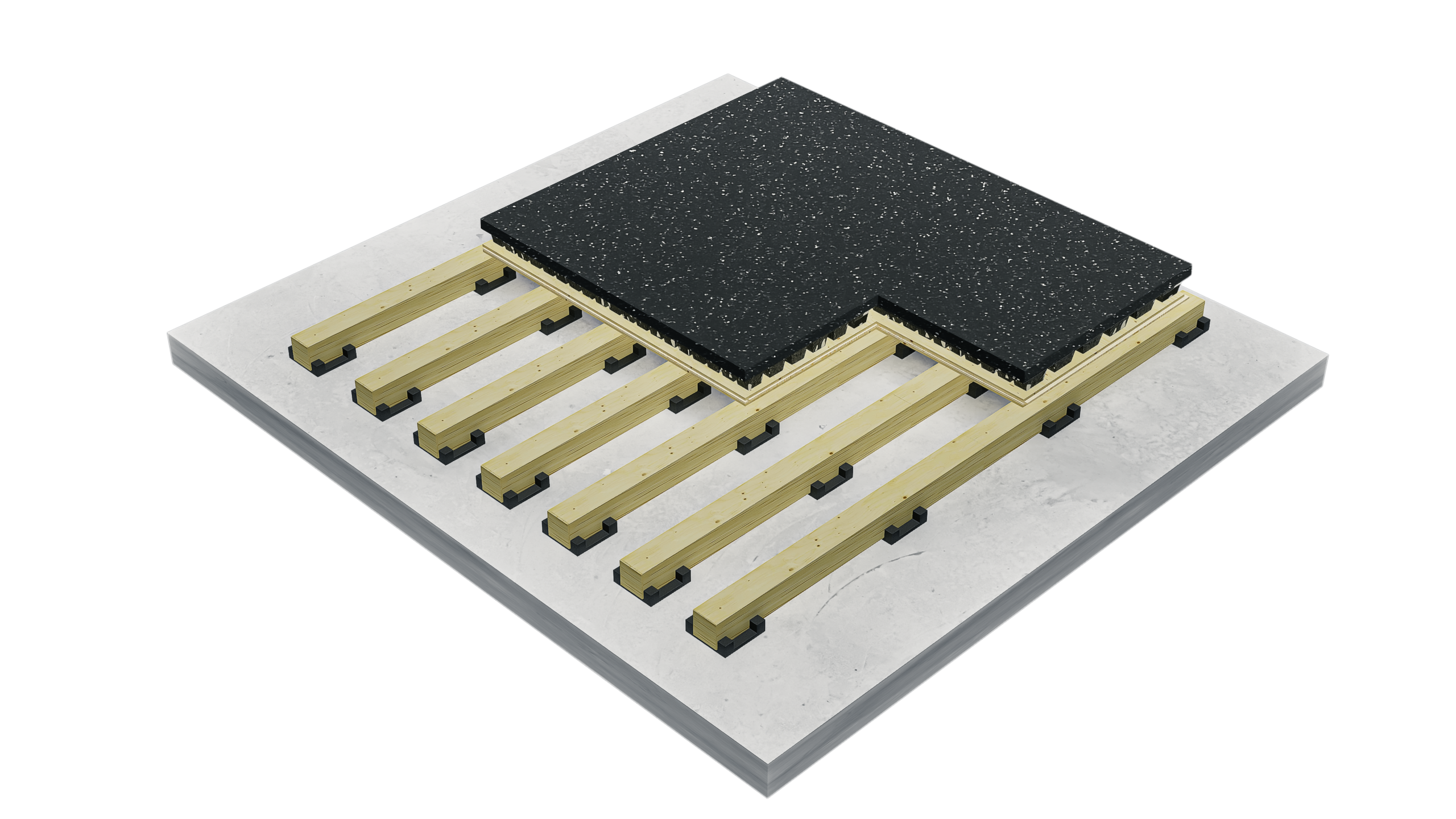

3D Model of GYMFLEX FREE WEIGHT flooring and cradles
