Gymflex Play

Gymflex Play is a sports vinyl floor for multi-use halls, laying area-elastic 2mm or combined-elastic 6.2mm vinyl over a plywood deck on sprung cradles.

Made for Activity spaces Dance Floors Sports Arenas

Floor heights: 72–324mm
Acoustic reduction: 25 dB
Static load: 500 kg/m²
Club components: 12

In detail

About Gymflex Play

Gymflex play is a unique Vinyl sports floor with excellent surface resilience, offering either Area Elastic or Combined Elastic properties, and conforms to the highest standard, BSEN14904 Part A4 or C4.

The floor is carefully levelled and calibrated using the unique New Era Sports cradle and flexjoist system with T&G Plywood, ensuring the highest standards are met. The Combined Elastic system is installed as 98% adhesive-free, therefore eco-friendly, and can easily have the surface replaced without affecting the New Era Area Elastic Substrate.

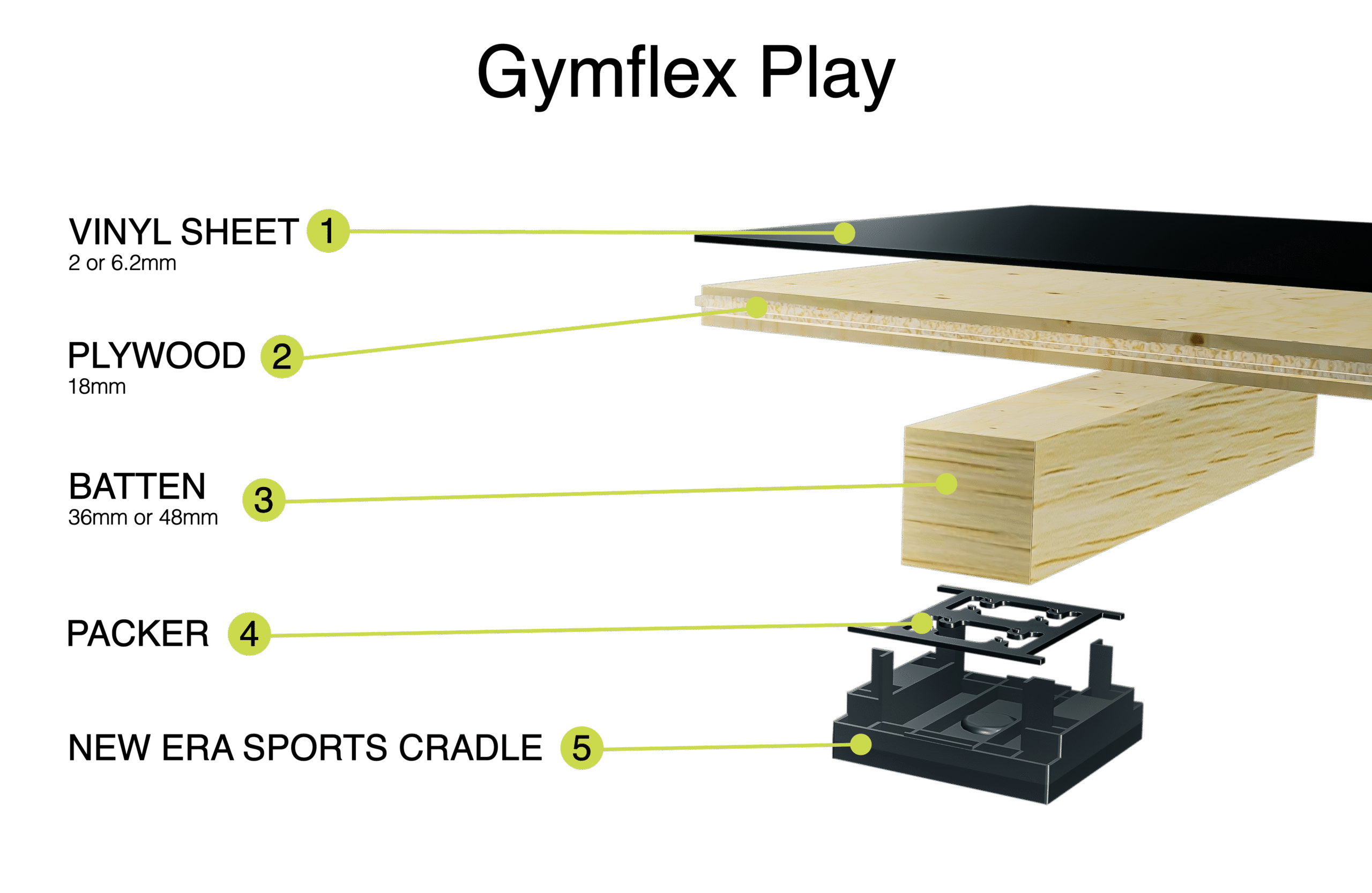

Specification

Floor Finish	Vinyl
Structural Layer	1x Layer 18mm T&G Plywood
Usage	Studios, Sports Arenas, Dance Floors, & Activity spaces
Cradles	New Era Sports*
Flexjoists	36 or 48mm flexjoists**
Floor Heights	72–324mm***
Flexjoist Centres	300mm
Cradle Centres (Along Flexjoist)	450mm (36mm Flexjoist), 600mm (48mm Flexjoist)
Acoustic Reduction	25 dB
Loading	500kg per m² Static Load & 350kg point load
Standard	Area or Combined Elastic BS EN 14904 Part A4 or C4

*Cradle Calculations: 8.5 per m² (36mm Flexjoist) 7.0 per m² (48mm Flexjoist)

*Flexjoist Calculations: 1.7 per m²

***2mm from 72-320mm (Area Elastic), 6mm from 76-324mm (Combined Elastic)

Premium Area or Combined Elastic sports floor

Built with unique flexjoists for high performance
Adjustable height (72–364 mm) – uses New Era cradles to overcome uneven sub-floors
Complies with EN14904 A4 or C4 standard – ensuring safety and professional sports performance
Customisable load-bearing – supports bleacher seating and additional project-specific needs

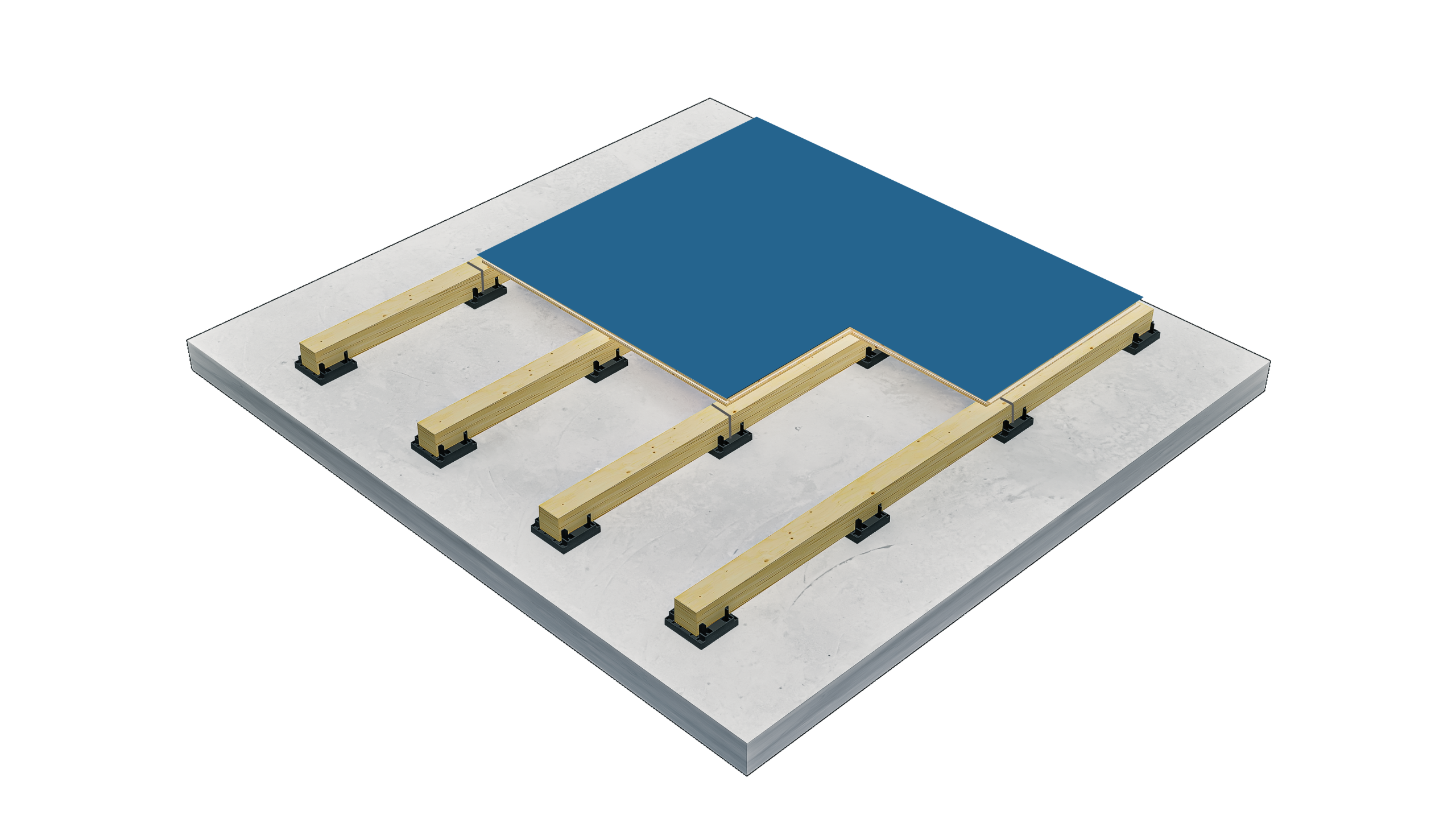

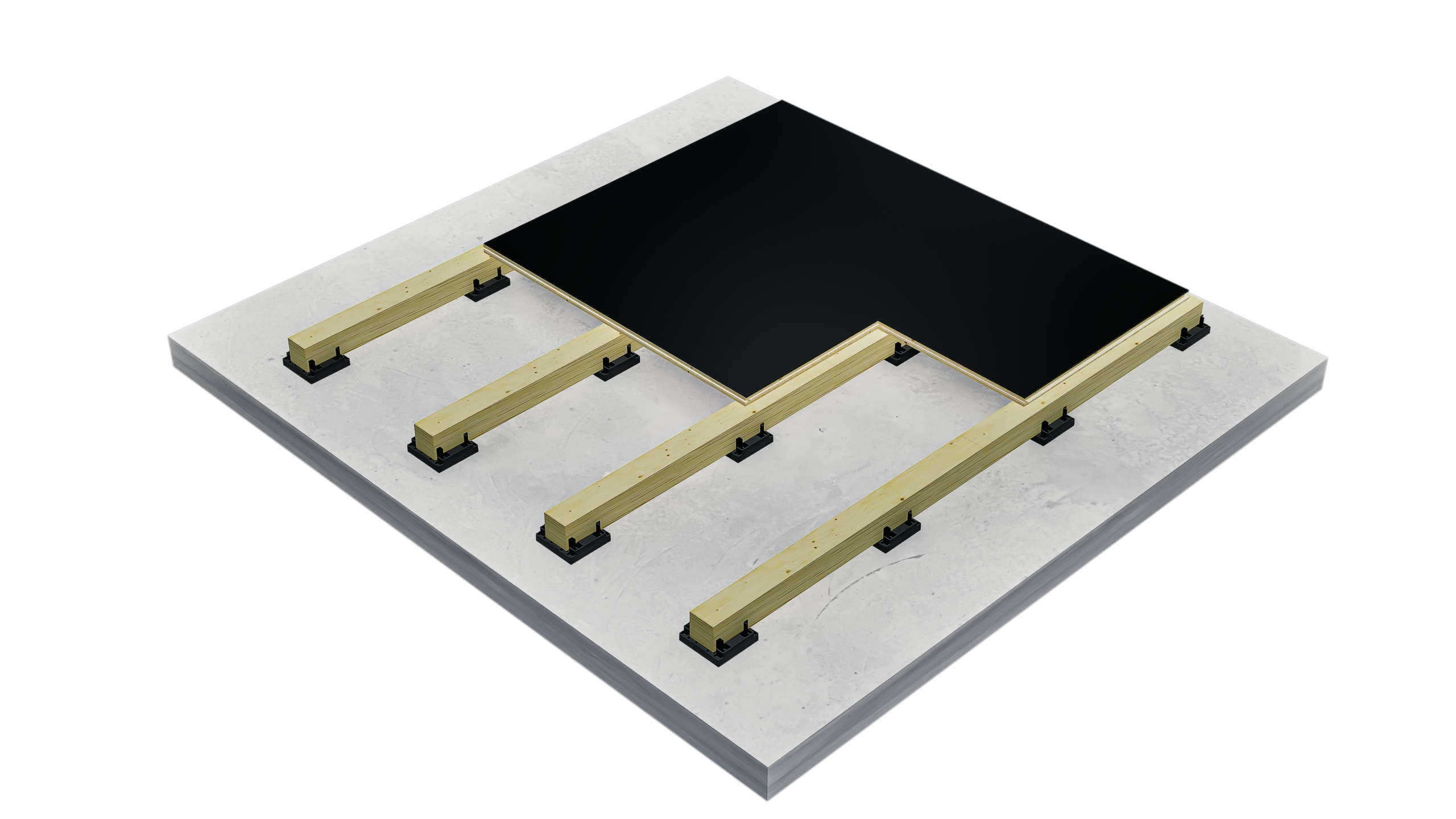

3D Model of GYMFLEX PLAY flooring and cradles
