New Era Club Battens
Gymflex Flexjoist 63mm x 45mm x 2100mm Laminated Battens
The deepest Flexjoist, and a specialist one: 63mm in a 2.1 metre length, used in the Free Weight and Powerlift systems where dropped loads rather than footfall set the design. The extra depth is there to take impact, and those systems lay it close: four battens per square metre, at least twice as many as a sports floor.
- Delivered as
- Each
- Weight
- 3.07 kg
- Used in
- 2 systems
- Size
- 2100 x 45 x 63mm
Price£6.12 inc VATSKU: NE70
Out of stock
- Prices include VAT
- Delivery calculated at checkout
- See where it sits in the floor
Quantity estimate
How many do I need?
Choose the system you are building and the size of the floor. The count uses the same rates as our system quotes, rounded up to whole battens.
| Gymflex Free Weight | 4 battens per m² |
|---|---|
| Gymflex Powerlift | 4 battens per m² |
Where it sits
Inside the floor, layer by layer
Highlighted: the battens layer of a heavy-impact floor. Hover or tap a layer to find it in the section, and follow the links to the parts that sit around it.
- Finish The surface on top: sports vinyl, rubber tiles or hardwood. Gymflex Rubber Tile 40 x 1000 x 500mm
- Deck Plywood or boards, fixed across the battens. New Era Gymflex Wisa Plywood 18mm x 2400mm x 600mm
- Adhesive Bonds the deck and glues its tongue and groove joints. New Era P300 Wood Adhesive 1L
- Shock roll A resilient layer beneath the deck. New Era Gymflex Shock Roll 5mm x 1m x 10m
- Battens This product Span between the supports and carry the deck.
- Rubberflex cradles Dense rubber supports, laid close together for dropped loads. New Era Rubberflex Cradle 10mm (Box 150)

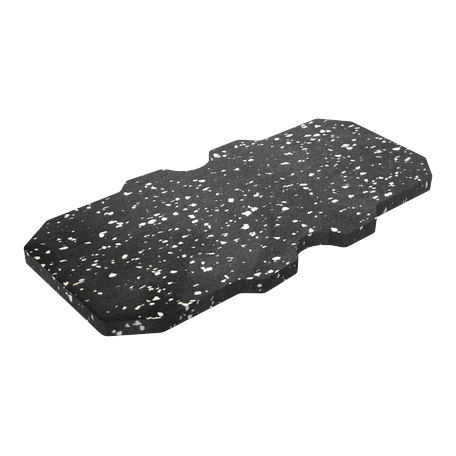

- Packers Close the gap beneath each support. New Era Rubberflex Packers 2mm (Box 100)
- Membrane 1000 gauge polythene, the first layer down. New Era 1000 Gauge Polythene Roll
- Substrate The concrete or timber sub-floor.
- Flanking strip Keeps the floating floor off the wall. New Era Perimeter Flanking Strip
In detail
What it does
Laminated from poplar plywood rather than sawn from solid, so there are no knots or shakes to work around and the batten will not twist or warp in service. The lamination is what makes a thin section usable as a sprung floor batten.
At a glance
Key features and benefits
-
Built for dropped loads
The depth is there for impact, not footfall.
-
Four per square metre
At least twice as close as in a sports floor.
-
No knots, no shakes
Laminated poplar plywood, not sawn timber.
-
Will not twist or warp
The lamination holds the section straight in service.
-
420 per pallet
About 1,289 kg.
