Gymflex Dance

Gymflex Dance is a sprung hardwood floor for studios up to 600 m², delivering shock absorption, acoustic isolation, and a lacquered finish for safe, dynamic performance

Made for Dance Floors

Floor heights: 74–367mm
Acoustic reduction: 25 dB
Static load: 500 kg/m²
Club components: 11

In detail

About Gymflex Dance

Gymflex Dance’s high-performance hardwood floor system is engineered to support all dance genres with optimal responsiveness, shock absorption, and consistent performance to reduce injury risk. Its durable lacquered finish offers the ideal balance of grip and slide, essential for safe and dynamic dance routines. Using the unique layout of the New Era Sprung cradle with flexjoists to enhance performance and acoustically isolating the space against impact sounds.

Specification

Floor Type	Real wood Solid or Layers
Species	Beech with various colours or Oak
Usage	Dance Floors
Cradles	New Era Sports*
Flexjoists	36 or 48mm Flex Joists**
Floor Heights	74–367mm
Flexjoist Centres	366mm
Cradle Centres (Along Flexjoist)	450mm (36mm batten), 600mm (48mm batten), Battens to be diamond pattern
Acoustic Reduction	25 dB
Loading	500kg per m² Static Load & 350kg point load
Standard	Area Elastic BS EN 14904 Part A3

*Cradle Calculations: 6.5 per m² (36mm Flexjoist) 5.0 per m² (48mm Flexjoist)
**Flexjoist Calculations: 1.7 per m²

Suits all dance genres
Reduces injury with uniform shock absorption
Perfect grip-to-slide balance
Height adjustable (74–367mm)
Acoustic impact sound tested

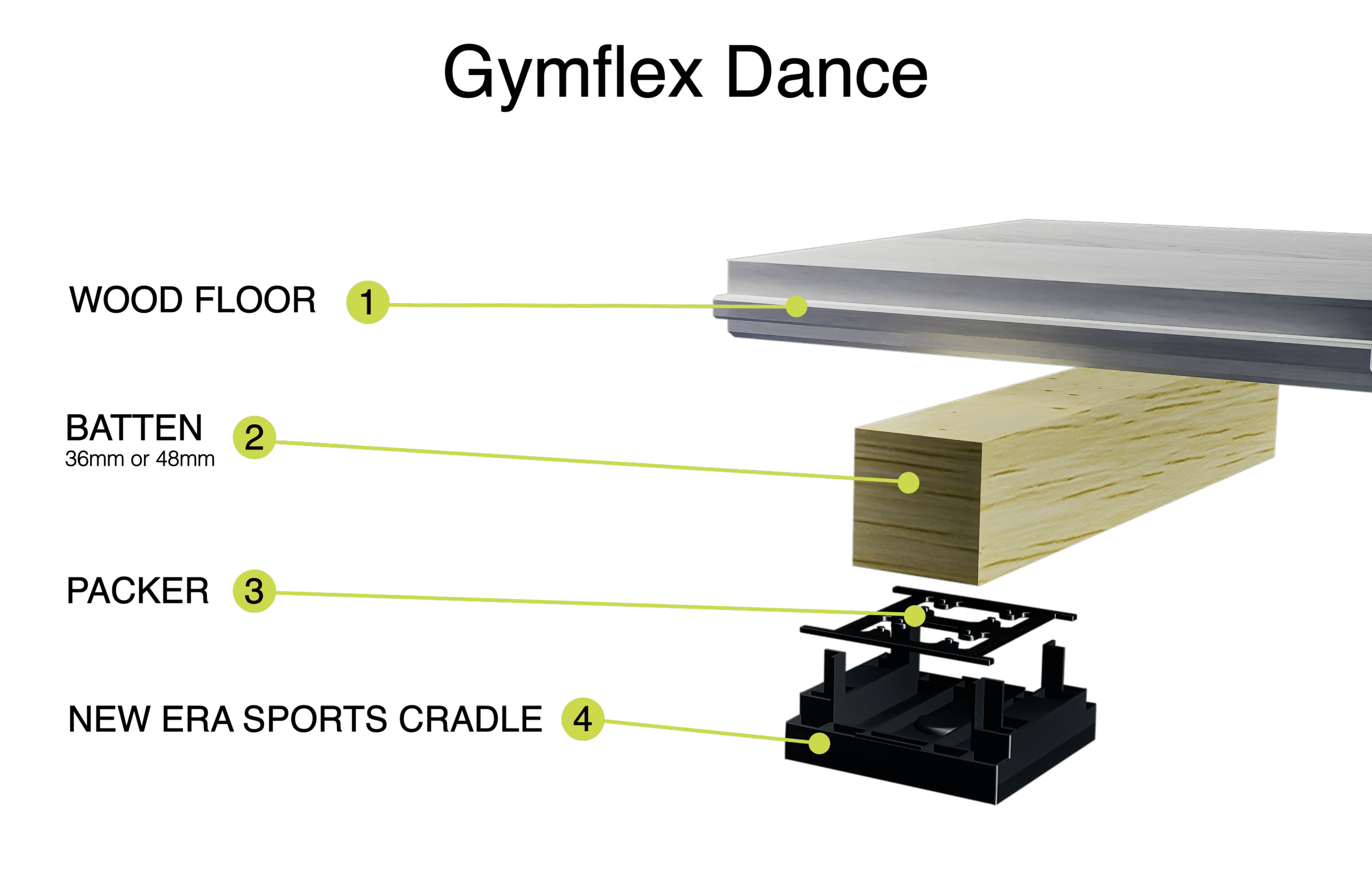

3D Model of GYMFLEX DANCE flooring and cradles

GYMFLEX DANCE FLOOR FINISH OPTIONS

Request a quote

Price your Gymflex Dance floor

Choose your floor height Each height is a set build-up of cradles, spacers and battens.
Pick your flooring and area Add wastage for cuts and awkward rooms. 5–15% is usual.
Request your quote We estimate delivery from your postcode at checkout and confirm it on your quote.
