Gymflex Systems

Gymflex Active

Gymflex Active is a sprung hardwood floor system for gyms up to 600 m², offering strength, acoustic isolation, and beech or oak finishes with optional rubber tiles

Made for Activity spaces Studios

Floor heights: 74–367mm
Acoustic reduction: 25 dB
Static load: 500 kg/m²
Club components: 11

In detail

About Gymflex Active

The Active sprung Wooden floor finish is a multi-use system for smaller gyms and Studios, conforming to Area Elastic standard of BSEN14904 Part A3.

It is carefully levelled and calibrated using the unique New Era Sports cradle and flexjoist system that prioritizes the health & safety of athletes while providing a high-performance surface that enhances play and stands the test of time.

Specification

Floor Type	Solid 129 x 22 x 1830mm Layers 215 x 21 x 2200mm
Wood Species	Beech or Oak
Usage	Studios & Activity spaces

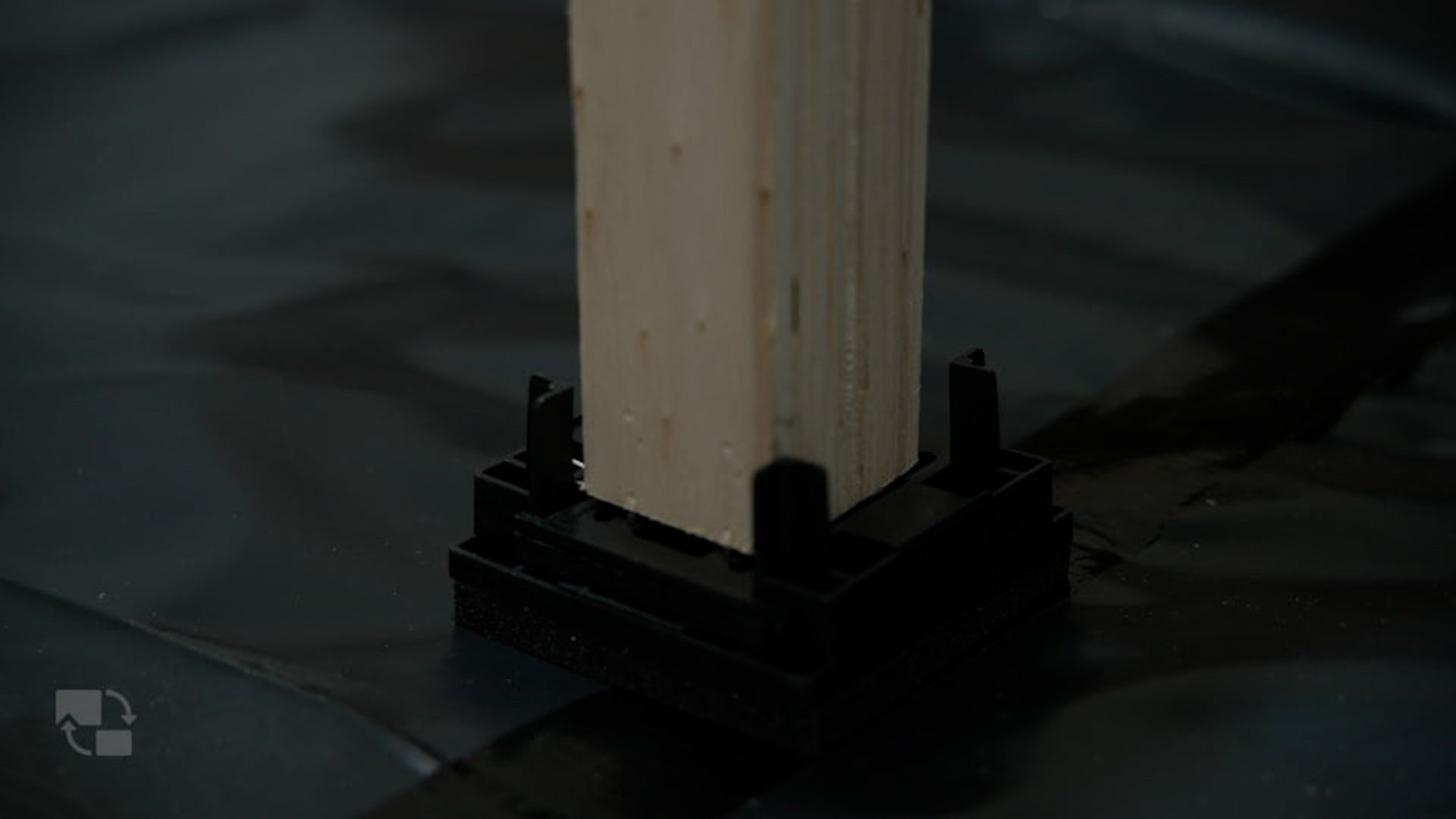

Cradles	New Era Sports*

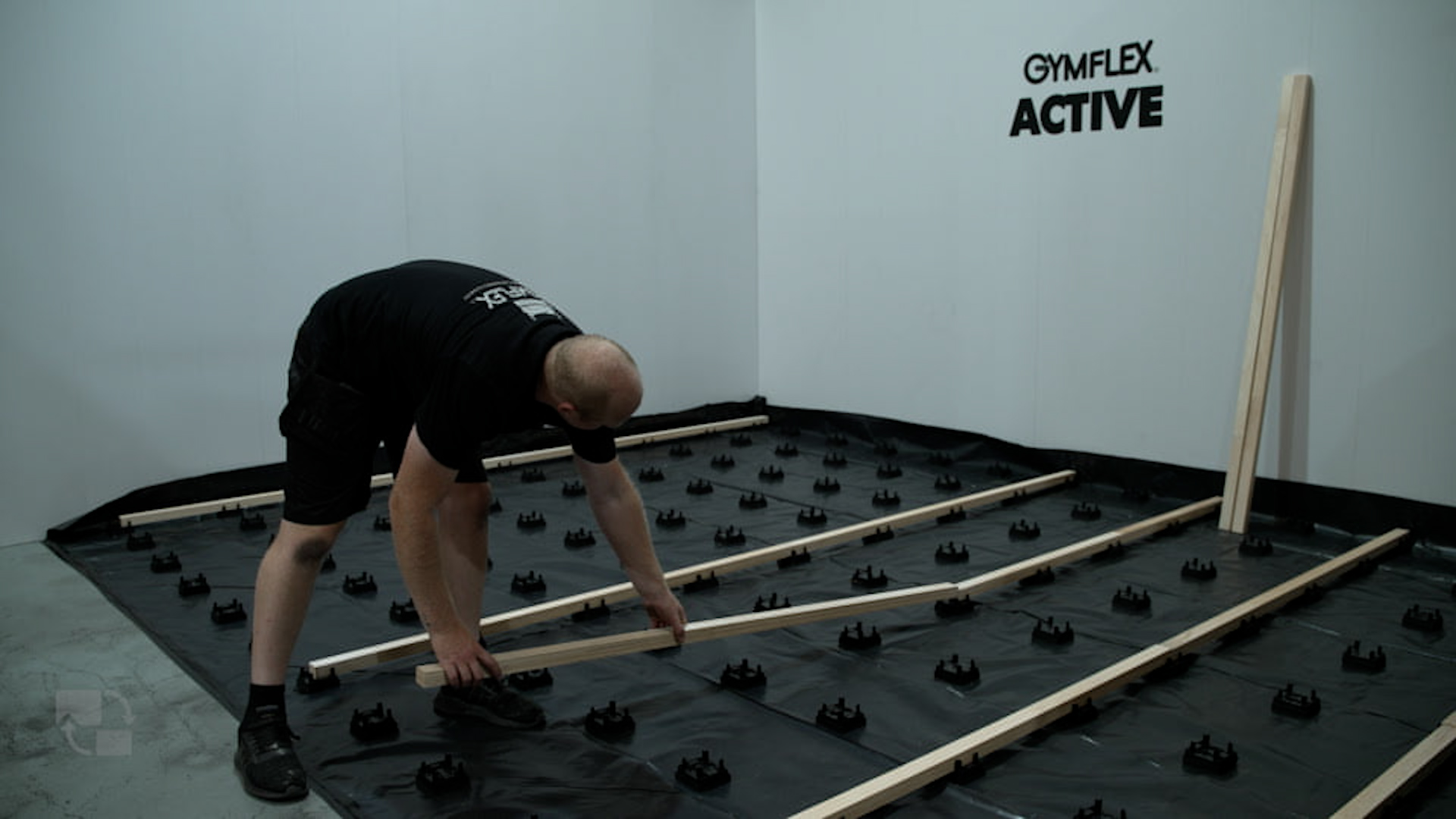

Flexjoists	36 or 48mm flexjoists **
Floor Heights	74–367mm

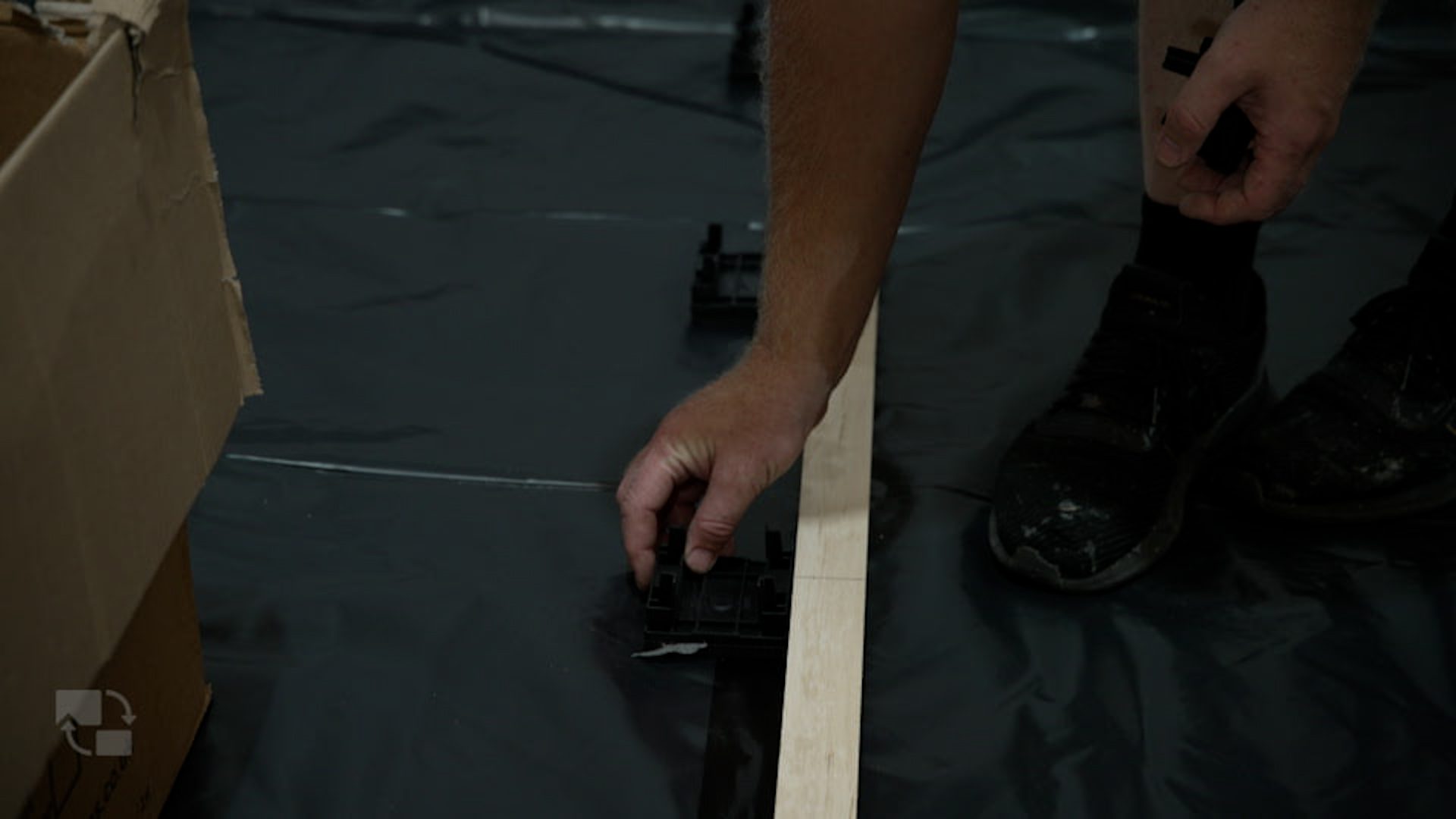

Flexjoist Centres	366mm
Cradle Centres (Along Flexjoist)	450mm (36mm batten), 600mm (48mm batten)
Acoustic Reduction	25 dB
Loading	500kg per m² Static Load & 350kg point load
Standard	Area Elastic BS EN 14904 Part A3

* Cradle Calculations: 6.5 per m² (36mm Flexjoist) 5.0 per m² (48mm Flexjoist)

** Flexjoist Calculations: 1.7 per m²

Adjustable height (74–367mm) with New Era cradles
Supports high surface loads and impacts
Ideal for gyms up to 600m², including upper levels
Maintains sprung floor and acoustic performance
Optional GYMFLEX rubber tiles available to protect flooring in free weight areas

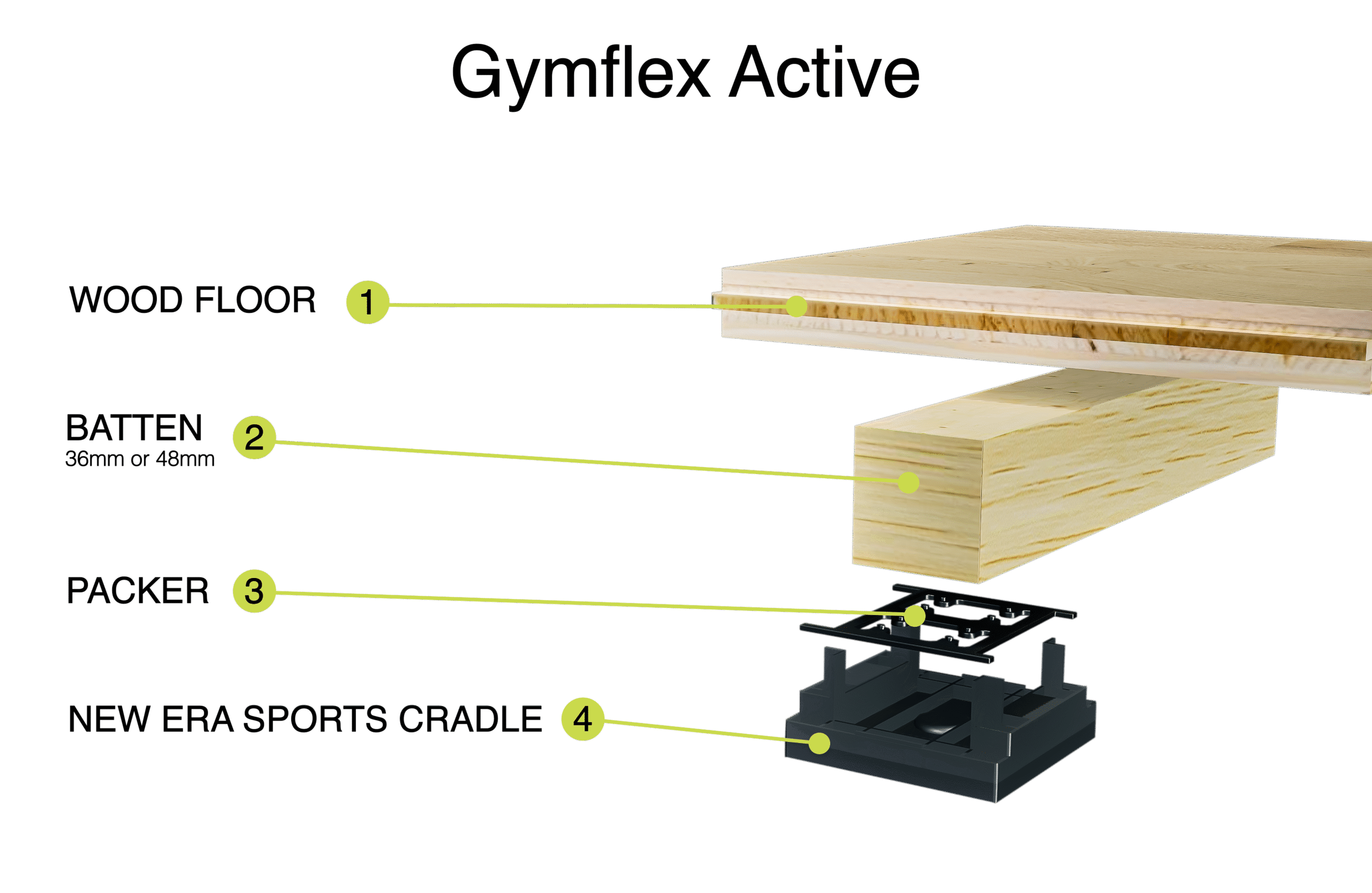

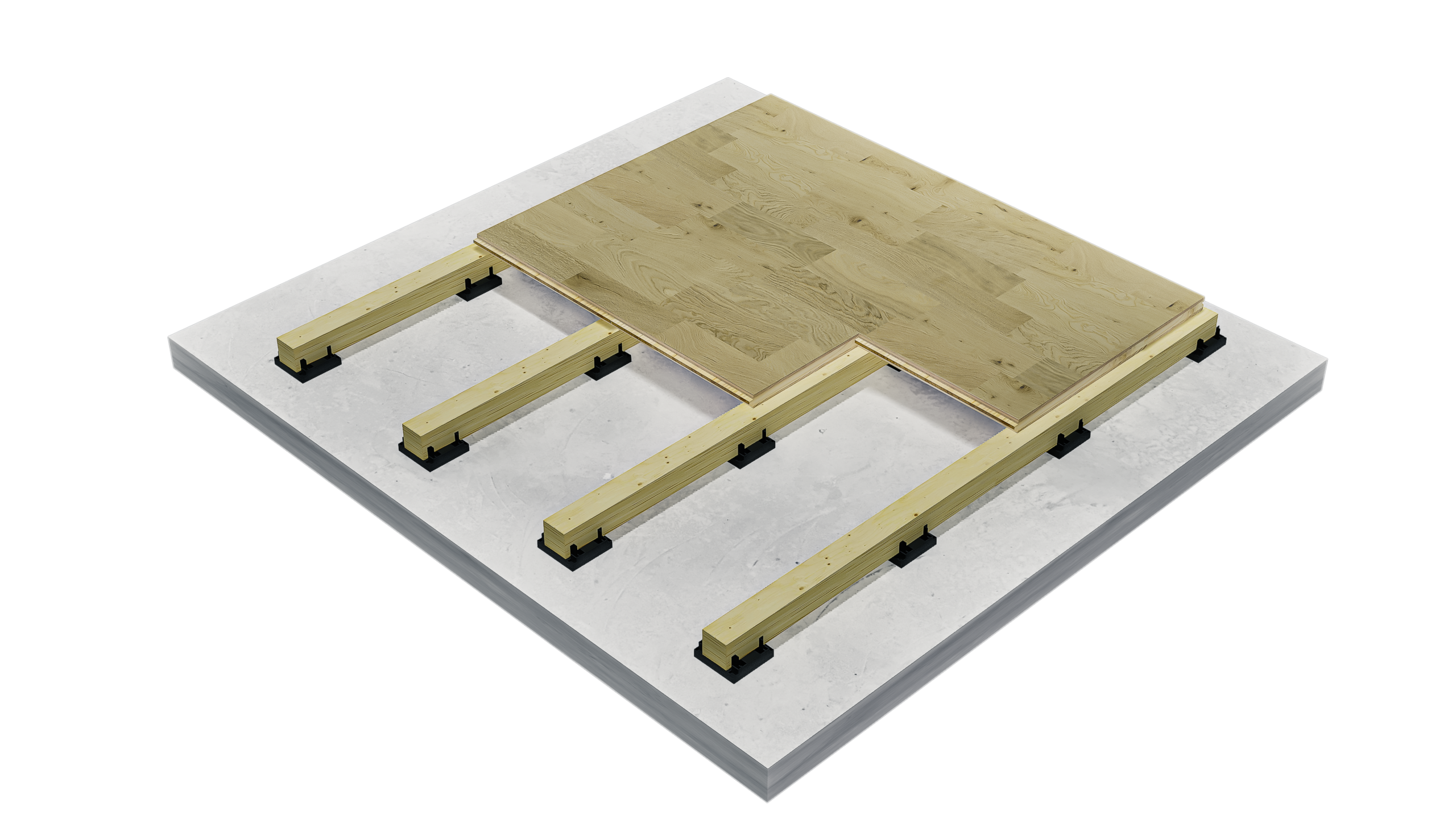

3D Model of GYMFLEX ACTIVE flooring and cradles

GYMFLEX ACTIVE FLOOR FINISH OPTIONS

GYMFLEX ACTIVE LAYERED FLOOR FINISH OPTIONS
