New Era Rubberflex Packers 5mm (Box 100)

New Era Club Packers

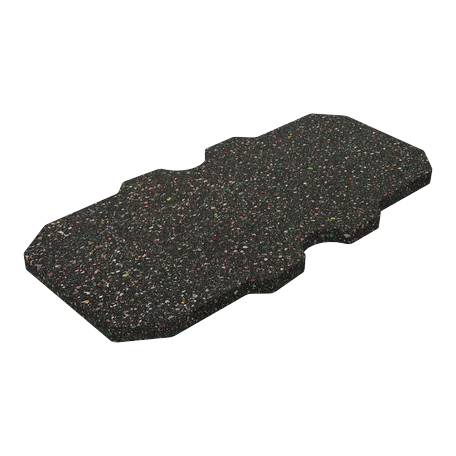

New Era Rubberflex Packers 5mm (Box 100)

The coarser of the two Rubberflex packers, at 5mm, for the gaps a 2mm will not close beneath a free weight or powerlifting build-up.

Delivered as
Box of 100
Per piece
£0.46
Weight
2.4 kg
Used in
2 systems
Price£46.49 inc VATSKU: NE76

Out of stock

Quantity estimate

How many do I need?

Choose the system you are building and the size of the floor. The count uses the same rates as our system quotes, rounded up to whole boxes.

Rate by system
Gymflex Free Weight 22 packers per m²
Gymflex Powerlift 22 packers per m²
System

22 boxes

2,200 packers · 22 packers per m²

£1,022.78 inc VAT at today’s price

Quote the whole floor

An estimate for this part only. A system quote prices every layer of the floor for your area.

Where it sits

Inside the floor, layer by layer

Highlighted: the packers layer of a heavy-impact floor. Hover or tap a layer to find it in the section, and follow the links to the parts that sit around it.

Section through the floor build-up01020304050607080910
Schematic section, not to scale.
  1. Finish The surface on top: sports vinyl, rubber tiles or hardwood. Gymflex Rubber Tile 40 x 1000 x 500mm
  2. Deck Plywood or boards, fixed across the battens. New Era Gymflex Wisa Plywood 18mm x 2400mm x 600mm
  3. Adhesive Bonds the deck and glues its tongue and groove joints. New Era P300 Wood Adhesive 1L
  4. Shock roll A resilient layer beneath the deck. New Era Gymflex Shock Roll 5mm x 1m x 10m
  5. Battens Span between the supports and carry the deck. Gymflex Flexjoist 63mm x 45mm x 2100mm Laminated Battens
  6. Rubberflex cradles Dense rubber supports, laid close together for dropped loads. New Era Rubberflex Cradle 10mm (Box 150)
  7. Packers This product Close the gap beneath each support.
  8. Membrane 1000 gauge polythene, the first layer down. New Era 1000 Gauge Polythene Roll
  9. Substrate The concrete or timber sub-floor.
  10. Flanking strip Keeps the floating floor off the wall. New Era Perimeter Flanking Strip

In detail

What it does

Matched to the Rubberflex cradle rather than the sports range, these pack out the heavy-impact build-ups used under free weight and powerlifting platforms, where the cradle has to stay fully bedded for the rubber to do its job.

At a glance

Key features and benefits

  1. For gaps a 2mm will not close

    5mm in a single piece.

  2. Keeps the cradle bedded

    A rocking cradle will not absorb a dropped load properly.

  3. Matched to the heavy-impact range

    Not the sports packers.

  4. 100 per box

    2.4 kg.

System compatibility

Compatible systems

Explore the systems this component can be used in.

02 compatible systems

Complete the build-up

The parts around it
