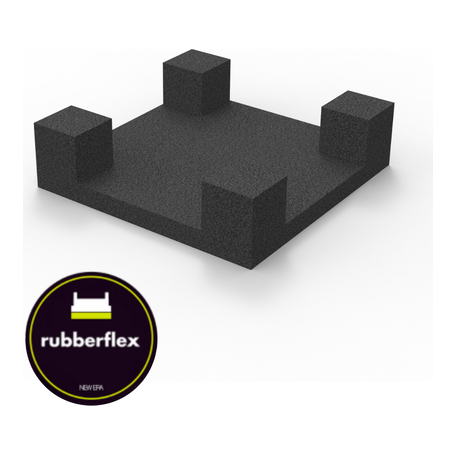

New Era Rubberflex Cradle 20mm (Box 90)

The deeper Rubberflex cradle, at 20mm, and the one to specify where the impact is heaviest. Twice the rubber under each point of the floor means more energy absorbed before the load reaches the structure, which matters on a powerlifting platform or anywhere plates are dropped from height.

Delivered as
Box of 90
Per piece
£0.94
Weight
2 kg
Used in
2 systems
Price£84.99 inc VATSKU: NE62

Out of stock

Quantity estimate

How many do I need?

Choose the system you are building and the size of the floor. The count uses the same rates as our system quotes, rounded up to whole boxes.

Rate by system
Gymflex Free Weight 22 cradles per m²
Gymflex Powerlift 22 cradles per m²
System

25 boxes

2,200 cradles · 22 cradles per m²

£2,124.75 inc VAT at today’s price

Quote the whole floor

An estimate for this part only. A system quote prices every layer of the floor for your area.

Where it sits

Inside the floor, layer by layer

Highlighted: the rubberflex cradles layer of a heavy-impact floor. Hover or tap a layer to find it in the section, and follow the links to the parts that sit around it.

Section through the floor build-up01020304050607080910
Schematic section, not to scale.
  1. Finish The surface on top: sports vinyl, rubber tiles or hardwood. Gymflex Rubber Tile 40 x 1000 x 500mm
  2. Deck Plywood or boards, fixed across the battens. New Era Gymflex Wisa Plywood 18mm x 2400mm x 600mm
  3. Adhesive Bonds the deck and glues its tongue and groove joints. New Era P300 Wood Adhesive 1L
  4. Shock roll A resilient layer beneath the deck. New Era Gymflex Shock Roll 5mm x 1m x 10m
  5. Battens Span between the supports and carry the deck. Gymflex Flexjoist 63mm x 45mm x 2100mm Laminated Battens
  6. Rubberflex cradles This product Dense rubber supports, laid close together for dropped loads.
  7. Packers Close the gap beneath each support. New Era Rubberflex Packers 2mm (Box 100)
  8. Membrane 1000 gauge polythene, the first layer down. New Era 1000 Gauge Polythene Roll
  9. Substrate The concrete or timber sub-floor.
  10. Flanking strip Keeps the floating floor off the wall. New Era Perimeter Flanking Strip

In detail

What it does

Like the 10mm, it is laid at twenty-two cradles per square metre. The same box holds fewer of them, 90 against 150, simply because each one is twice as deep.

At a glance

Key features and benefits

  1. Twice the rubber of the 10mm

    For the heaviest impact.

  2. Built for dropped loads

    Barbells and plates, not footfall.

  3. Twenty-two per square metre

    Load spread across far more points than a sports floor.

  4. Acoustic isolation under heavy impact

    Which is what free weight areas above occupied space need.

  5. 90 per box

    20 kg.

System compatibility

Compatible systems

Explore the systems this component can be used in.

02 compatible systems

Complete the build-up

The parts around it
