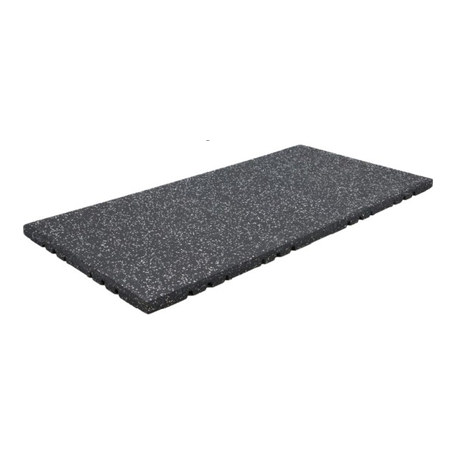

Gymflex Rubber Tile 40 x 1000 x 500mm

New Era Club Finish

Gymflex Rubber Tile 40 x 1000 x 500mm

The heavy-duty tile: 40mm thick, in a 1000 x 500mm format that is manageable to lift at that depth. Twice the thickness of the 20mm tile, and specified where weights are dropped rather than wheeled.

Delivered as
Each
Weight
16 kg
Used in
2 systems
Size
1000 x 500 x 40mm
Price£37.80 inc VATSKU: NE60

Out of stock

Quantity estimate

How many do I need?

Choose the system you are building and the size of the floor. The count uses the same rates as our system quotes, rounded up to whole tiles.

Rate by system
Gymflex Free Weight 2 tiles per m²
Gymflex Powerlift 2 tiles per m²
System

200 tiles

2 tiles per m²

£7,560.00 inc VAT at today’s price

Quote the whole floor

An estimate for this part only. A system quote prices every layer of the floor for your area.

Where it sits

Inside the floor, layer by layer

Highlighted: the finish layer of a heavy-impact floor. Hover or tap a layer to find it in the section, and follow the links to the parts that sit around it.

Section through the floor build-up01020304050607080910
Schematic section, not to scale.
  1. Finish This product The surface on top: sports vinyl, rubber tiles or hardwood.
  2. Deck Plywood or boards, fixed across the battens. New Era Gymflex Wisa Plywood 18mm x 2400mm x 600mm
  3. Adhesive Bonds the deck and glues its tongue and groove joints. New Era P300 Wood Adhesive 1L
  4. Shock roll A resilient layer beneath the deck. New Era Gymflex Shock Roll 5mm x 1m x 10m
  5. Battens Span between the supports and carry the deck. Gymflex Flexjoist 63mm x 45mm x 2100mm Laminated Battens
  6. Rubberflex cradles Dense rubber supports, laid close together for dropped loads. New Era Rubberflex Cradle 10mm (Box 150)
  7. Packers Close the gap beneath each support. New Era Rubberflex Packers 2mm (Box 100)
  8. Membrane 1000 gauge polythene, the first layer down. New Era 1000 Gauge Polythene Roll
  9. Substrate The concrete or timber sub-floor.
  10. Flanking strip Keeps the floating floor off the wall. New Era Perimeter Flanking Strip

In detail

What it does

Two tiles cover a square metre. The 15% light grey fleck runs through the thickness, so scuffing does not show.

At a glance

Key features and benefits

  1. Twice the thickness of the 20mm tile

    For dropped weights.

  2. Half-size format

    Manageable to lift at 40mm deep.

  3. Fleck runs through the tile

    Wear does not show as bare patches.

  4. Two tiles per square metre

    50 per pallet.

System compatibility

Compatible systems

Explore the systems this component can be used in.

02 compatible systems

Complete the build-up

The parts around it
