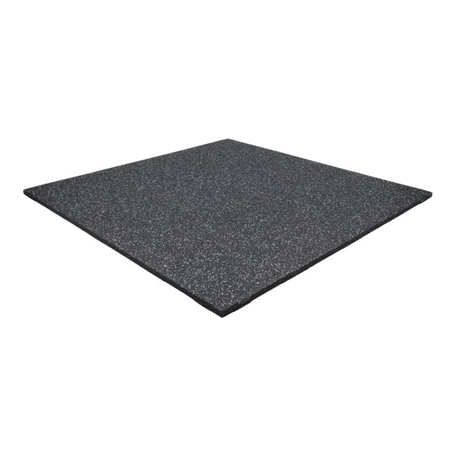

Gymflex Rubber Tile 20 x 1000 x 1000mm

New Era Club Finish

Gymflex Rubber Tile 20 x 1000 x 1000mm

A one metre square rubber tile, 20mm thick, laid as the wearing surface over a Gymflex Cardio build-up. One tile covers one square metre, so quantities are as simple as they get.

Delivered as
Each
Weight
18 kg
Used in
1 system
Size
1000 x 1000 x 20mm
Price£41.40 inc VATSKU: NE59

Out of stock

Quantity estimate

How many do I need?

Choose the system you are building and the size of the floor. The count uses the same rates as our system quotes, rounded up to whole tiles.

Rate by system
Gymflex Cardio 1 tiles per m²

System Gymflex Cardio

100 tiles

1 tiles per m²

£4,140.00 inc VAT at today’s price

Quote the whole floor

An estimate for this part only. A system quote prices every layer of the floor for your area.

Where it sits

Inside the floor, layer by layer

Highlighted: the finish layer of a cradle and batten floor. Hover or tap a layer to find it in the section, and follow the links to the parts that sit around it.

Section through the floor build-up010203040506070809
Schematic section, not to scale.
  1. Finish This product The surface on top: sports vinyl, rubber tiles or hardwood.
  2. Deck Plywood or boards, fixed across the battens. New Era Gymflex Wisa Plywood 18mm x 2400mm x 600mm
  3. Adhesive Bonds the deck and glues its tongue and groove joints. New Era P300 Wood Adhesive 1L
  4. Battens Span between the supports and carry the deck. Gymflex Flexjoist 36mm x 45mm x 1800mm Laminated Battens
  5. Cradles Adjustable resilient supports that set the floor level. 16/30mm Sports Cradles (Box 420)
  6. Packers Close the gap beneath each support. New Era 3mm Packers (300 per bag)
  7. Membrane 1000 gauge polythene, the first layer down. New Era 1000 Gauge Polythene Roll
  8. Substrate The concrete or timber sub-floor.
  9. Flanking strip Keeps the floating floor off the wall. New Era Perimeter Flanking Strip

In detail

What it does

The 15% light grey fleck is through the thickness rather than printed, so scuffing and wear do not show as bare patches.

At a glance

Key features and benefits

  1. One tile, one square metre

    Quantities need no working out.

  2. Fleck runs through the tile

    Wear does not show as bare patches.

  3. 20mm of protection

    For cardio and studio use.

  4. 50 per pallet

    18 kg each.

System compatibility

Compatible systems

Explore the systems this component can be used in.

01 compatible system

Complete the build-up

The parts around it
