New Era Club Shock roll
New Era Gymflex Shock Roll 5mm x 1m x 10m
A 5mm resilient roll laid beneath the plywood in the Powerlift system, where it does a different job from the cradles below it. The cradles handle the big impacts; the Shock Roll takes the higher-frequency energy that would otherwise pass straight through the deck.
- Delivered as
- Roll
- Weight
- 37.5 kg
- Used in
- 1 system
Price£108.00 inc VATSKU: NE63
Out of stock
- Prices include VAT
- Delivery calculated at checkout
- See where it sits in the floor
Quantity estimate
How many do I need?
Choose the system you are building and the size of the floor. The count uses the same rates as our system quotes, rounded up to whole rolls.
| Gymflex Powerlift | 1 roll per 10 m² |
|---|
Where it sits
Inside the floor, layer by layer
Highlighted: the shock roll layer of a heavy-impact floor. Hover or tap a layer to find it in the section, and follow the links to the parts that sit around it.
- Finish The surface on top: sports vinyl, rubber tiles or hardwood. Gymflex Rubber Tile 40 x 1000 x 500mm

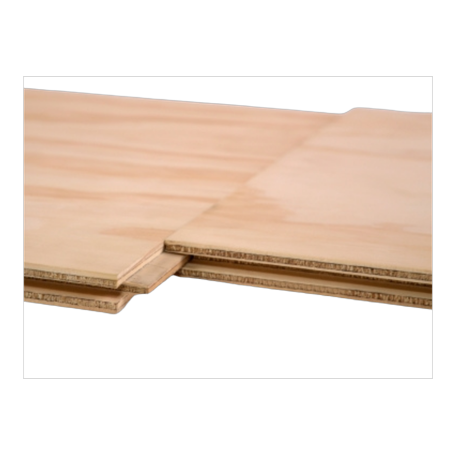

- Deck Plywood or boards, fixed across the battens. New Era Gymflex Wisa Plywood 18mm x 2400mm x 600mm
- Adhesive Bonds the deck and glues its tongue and groove joints. New Era P300 Wood Adhesive 1L
- Shock roll This product A resilient layer beneath the deck.
- Battens Span between the supports and carry the deck. Gymflex Flexjoist 63mm x 45mm x 2100mm Laminated Battens

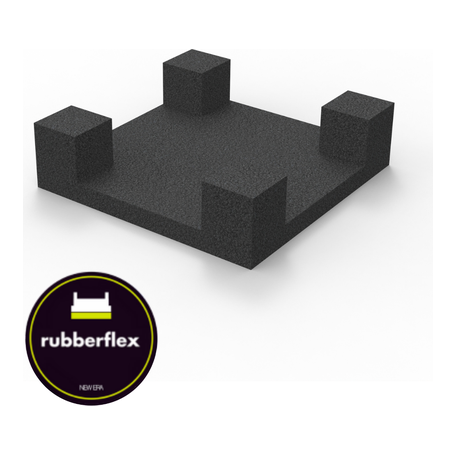

- Rubberflex cradles Dense rubber supports, laid close together for dropped loads. New Era Rubberflex Cradle 10mm (Box 150)
- Packers Close the gap beneath each support. New Era Rubberflex Packers 2mm (Box 100)
- Membrane 1000 gauge polythene, the first layer down. New Era 1000 Gauge Polythene Roll
- Substrate The concrete or timber sub-floor.
- Flanking strip Keeps the floating floor off the wall. New Era Perimeter Flanking Strip
In detail
What it does
The same product is also sold as New Era Acoustic Underlay 5mm. One 10 square metre roll covers 10 square metres.
At a glance
Key features and benefits
-
Works with the cradles, not instead of them
Takes the energy they pass on.
-
Specified in the Powerlift build-up
Beneath the plywood deck.
-
10 m² per roll
37.5 kg.
-
Also sold as Acoustic Underlay 5mm
The same roll under either name.
System compatibility
Compatible systems
Explore the systems this component can be used in.
01 compatible system
Gymflex Systems
Complete the build-up
The parts around it
Is New Era Gymflex Shock Roll 5mm x 1m x 10m right for you?
Datasheets and Specifications
