Product Overview
GYMFLEX ARENA
The Arena sprung Wooden floor finish is the professional standard for Multi-purpose Sports Hall and Arenas, conforming to an Area Elastic standard of BSEN14904 Part A4.
It is a carefully levelled and calibrated using the unique New Era Sports cradle and flex joist system that prioritizes the health & safety of athletes while providing a high performance surface that enhances play and stands the test of time.
Key Features and Benefits
- Premium area-elastic sports floor –built with unique flexjoists for high performance
- Adjustable height (74–367 mm) – uses New Era cradles to overcome uneven sub-floors
- Complies with EN14904 A4 standard – ensuring safety and professional sports performance
- Customizable load-bearing – supports bleacher seating and additional project-specific needs
| Floor Type | Solid 129 x 22 x 1830mm Layers 215 x 21 x 2200mm |
|---|---|
| Wood Species | Beech or Oak |
| Usage | Sports Halls / Arenas |
| Cradles | New Era Sports* |
| Flexjoists | 36 or 48mm Flex Joists** |
| Floor Heights | 74-367mm |

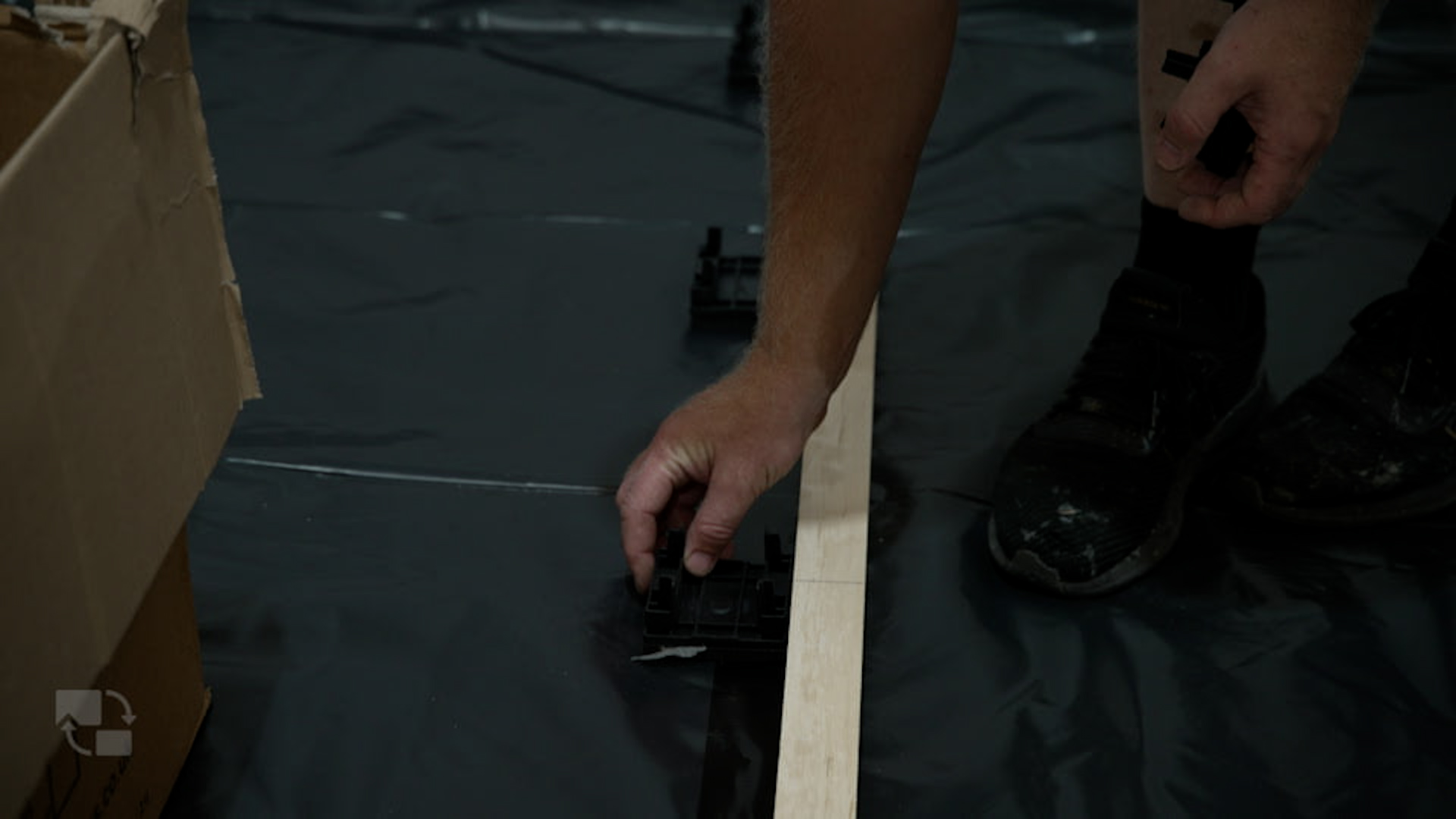

| Flexjoist Centres | 411mm (Solid) or 440mm (Layered) |
| Cradle Centres (Along Flexjoist) | 450mm (36mm Flexjoist) 600mm (48mm Flexjoist) |
| Acoustic Reduction | 25db |
| Loading | 500kg per m2 Static Load & 350kg point load |
| Standard | Area Elastic BSEN14904 Part A4 |
*Cradle Calculations: 17.0 per m2 (36mm, 48mm, 63mm Flexjoist)
**Flexjoist Calculations: 3.4 per m2(6.3mm Flexjoist), 4.0 per m2 (36mm, 48mm Flexjoist)

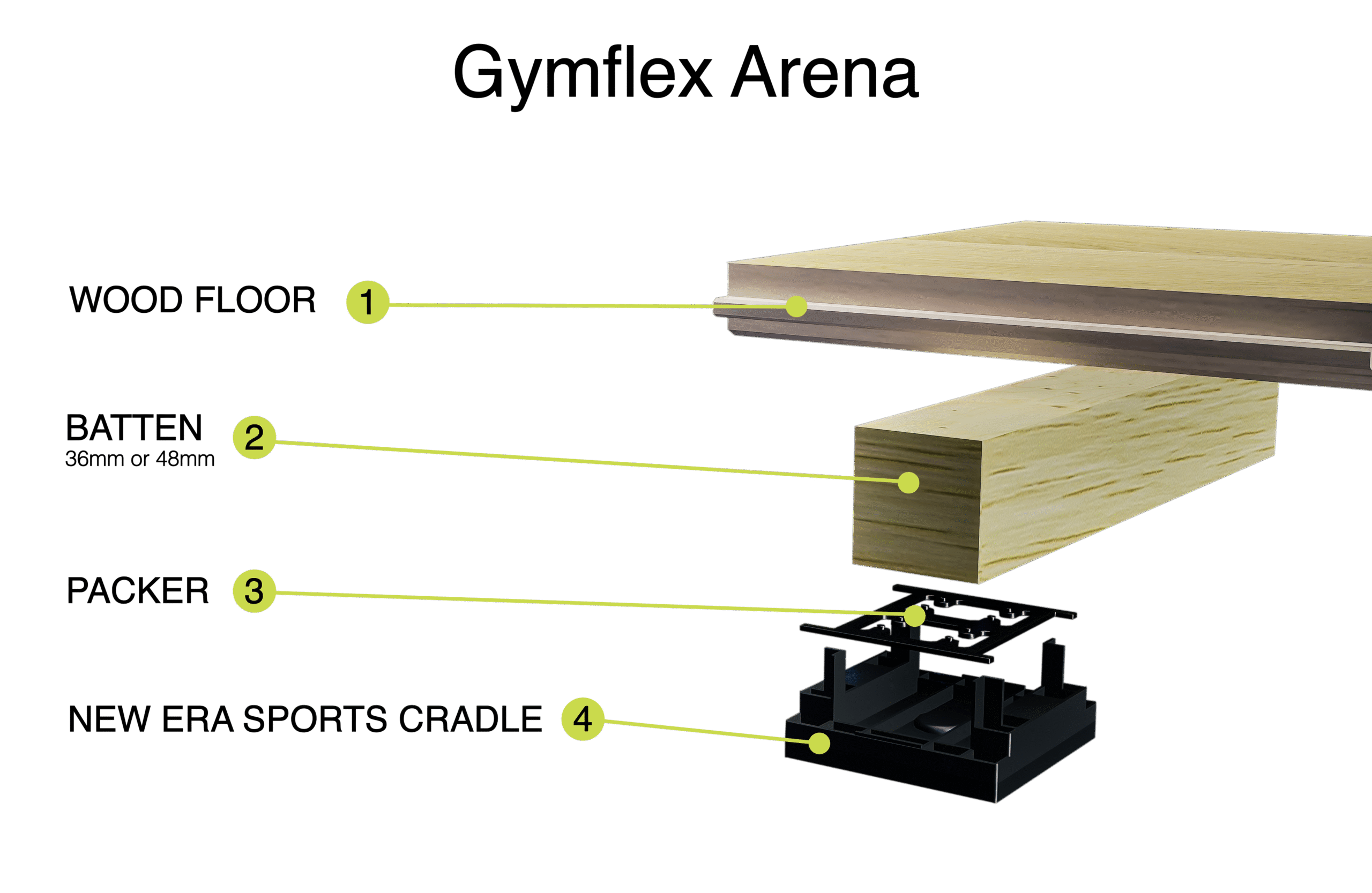

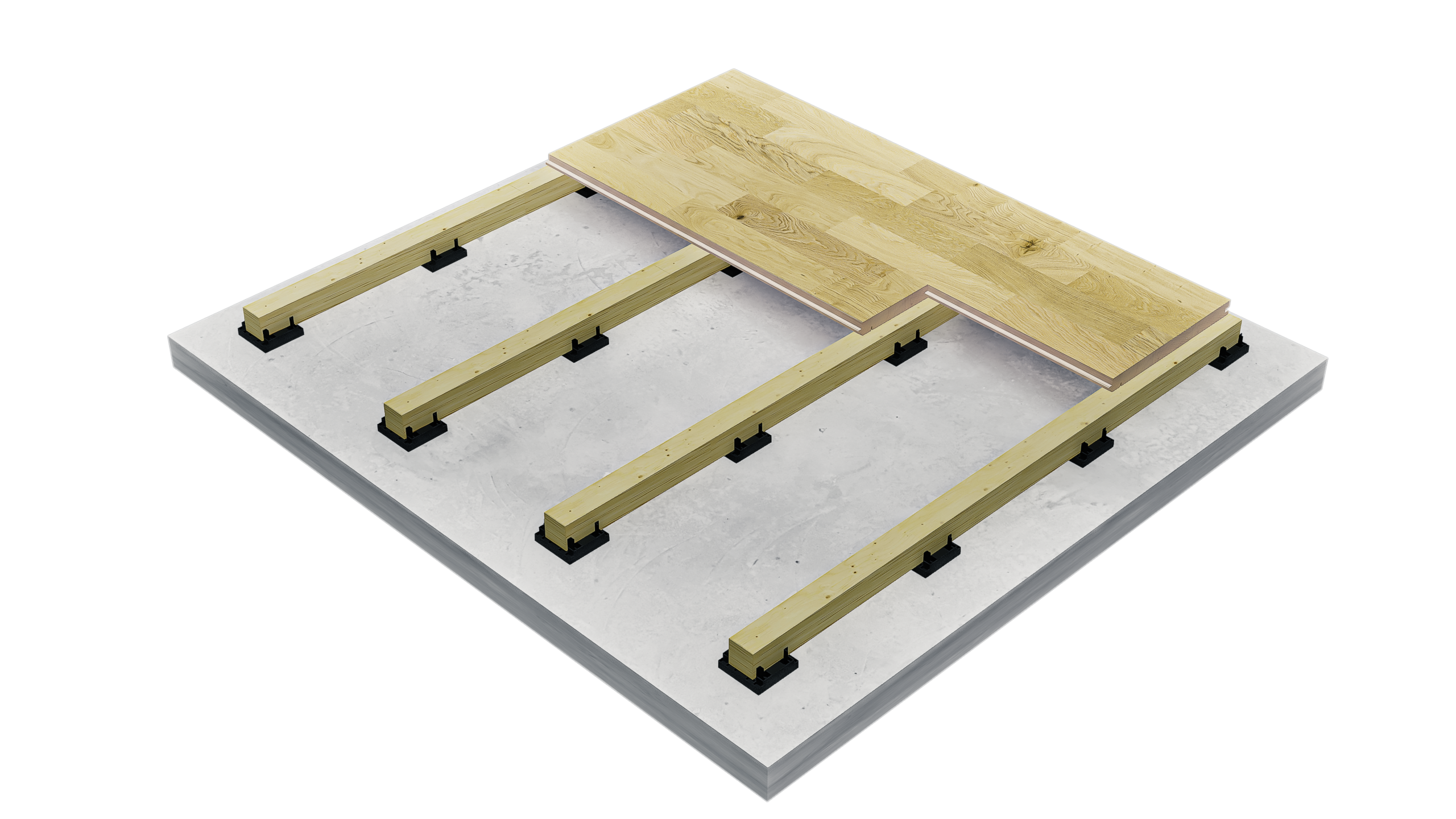

3D Model of GYMFLEX ARENA flooring and cradles
GYMFLEX ARENA FLOOR FINISH OPTIONS
GYMFLEX ARENA LAYERED FLOOR FINISH OPTIONS
Request a Quote
Requst a free sample of GYMFLEX ARENA
Datasheets and Specifications
New Era Floor Systems LTD | Overview | NBS Source
Video Showcase

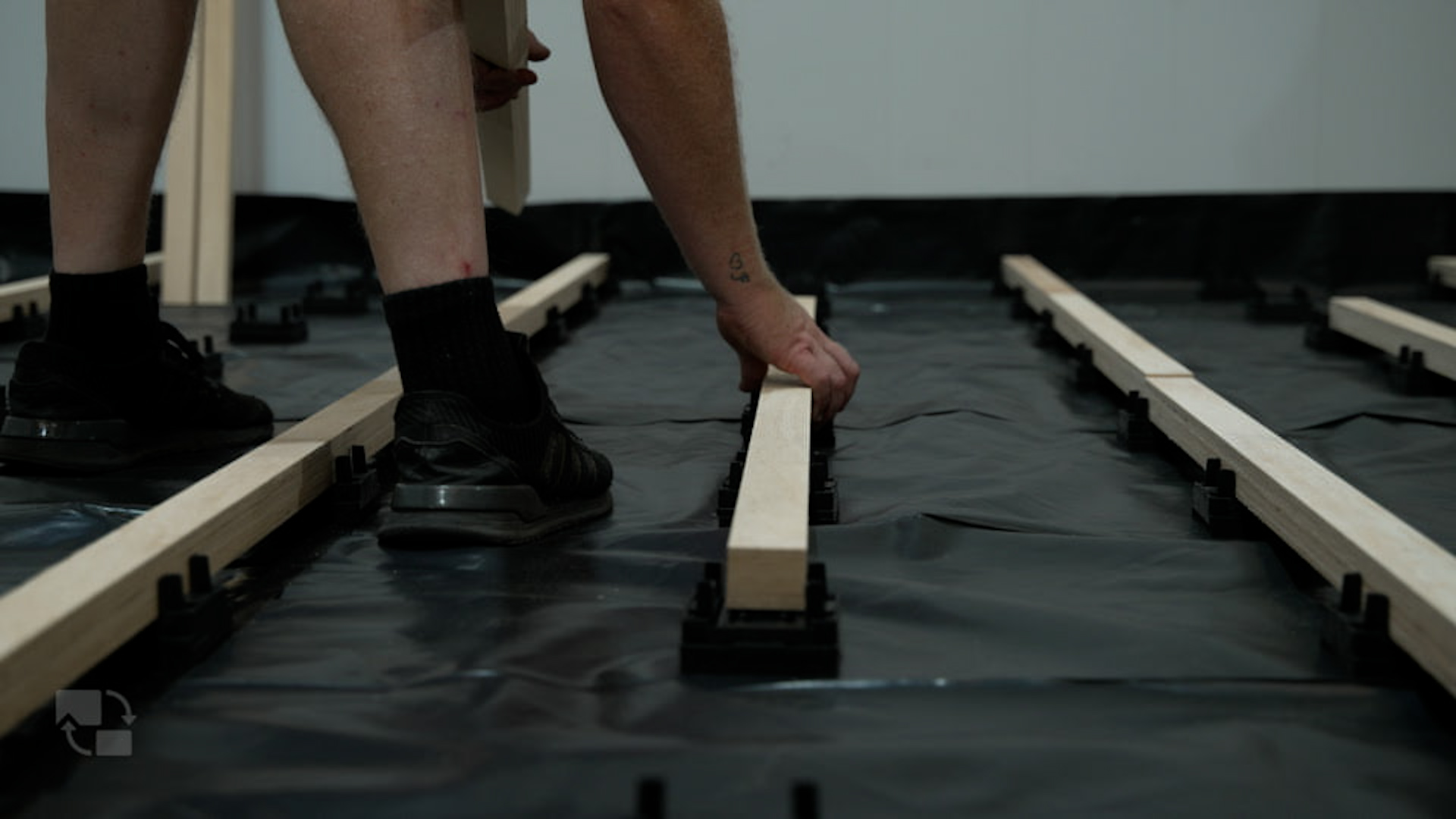

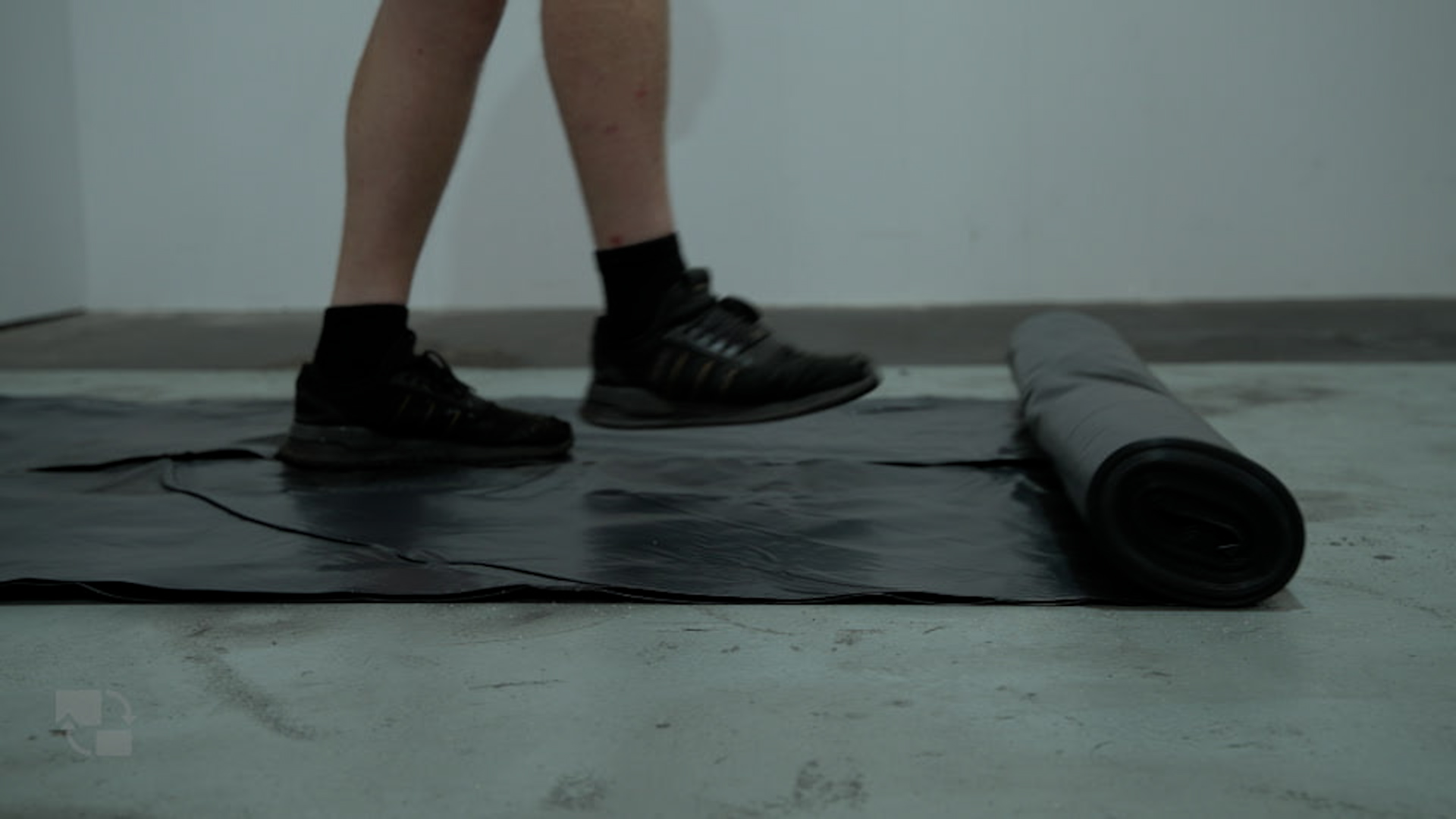

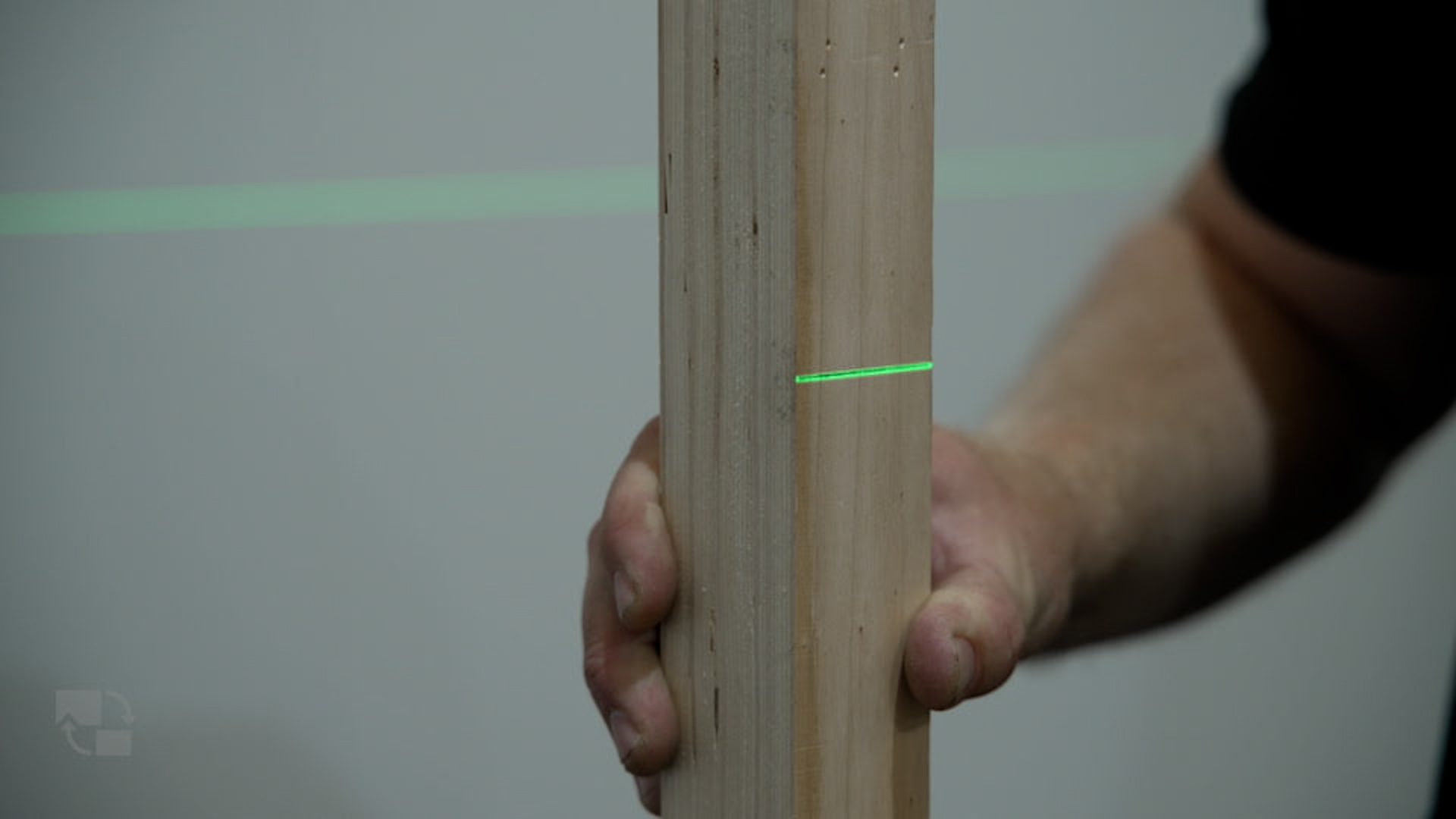

How to install the GYMFLEX ARENA system
Download the detailed instructions to install this system
