Product Overview
GYMFLEX MULTI
Gymflex Multi is a standard low level Area elastic batten system that conforms to BSEN14904 Part A3, designed for use over existing flat substrates, making this ideal for renovations that require a quick & easy installation whilst providing a fitness floor with enhanced performance & Durability.
Using the Unique Flexjoists with foam pads, this batten system is highly effective, traditional method for creating a simple and safe playing surface.
Key Features and Benefits
- Quick and easy installation
- Cost effective
- 3 height options
- Ideal for areas of all sizes
- Great for renovations or overlay of existing floors.
| Floor Type | Real wood Solid or Layers |
|---|---|
| Species | Beech or Oak |
| Usage | Studios & Activity spaces |
| Flexjoists | 32, 46, 58mm Flexjoists Multi* |
| Floor Heights | 53mm, 67mm, 79mm |

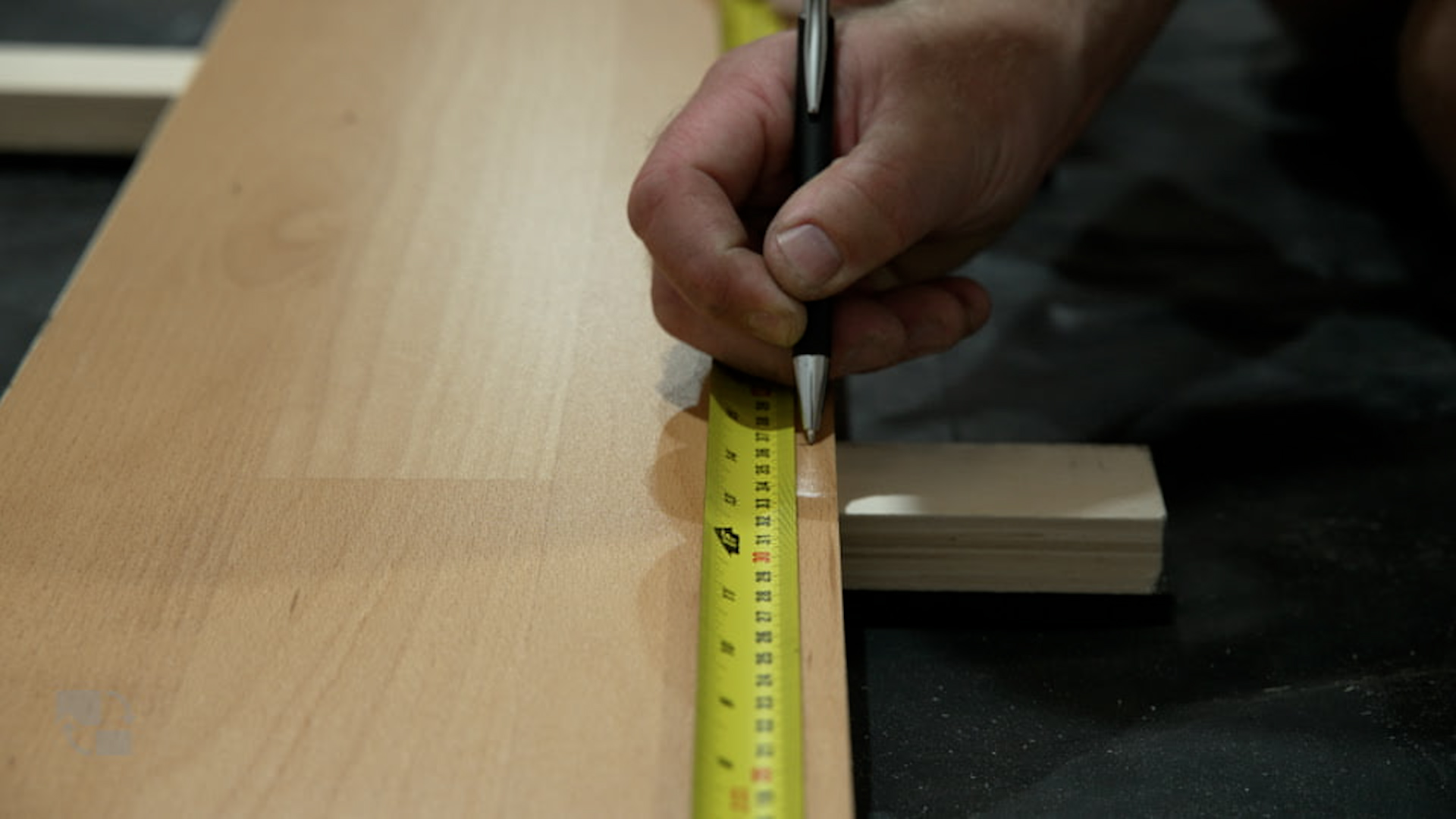

| Flexjoists Centres | 366mm |
| Acoustic Reduction | 17-22dB |
| Loading | 500kg per m2 Static Load & 350kg point load |
| Standard | Area Elastic BSEN14904 Part A3 |
*Flexjoist Calculations: Flexjoist 53 = 1.33per m2 Flexjoist 67 & 79 = 1.77per m2

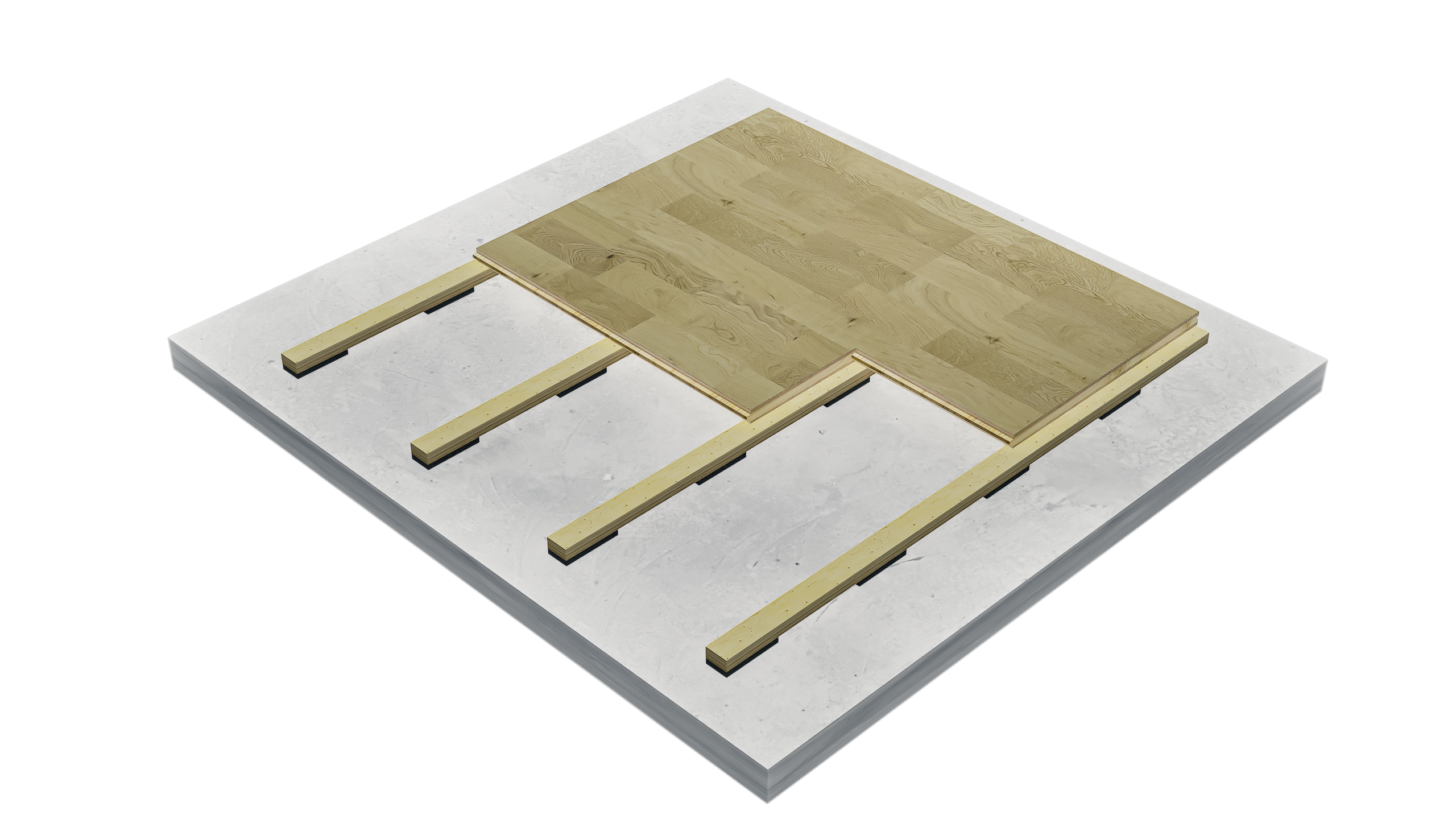

3D Model of GYMFLEX MULTI flooring and cradles

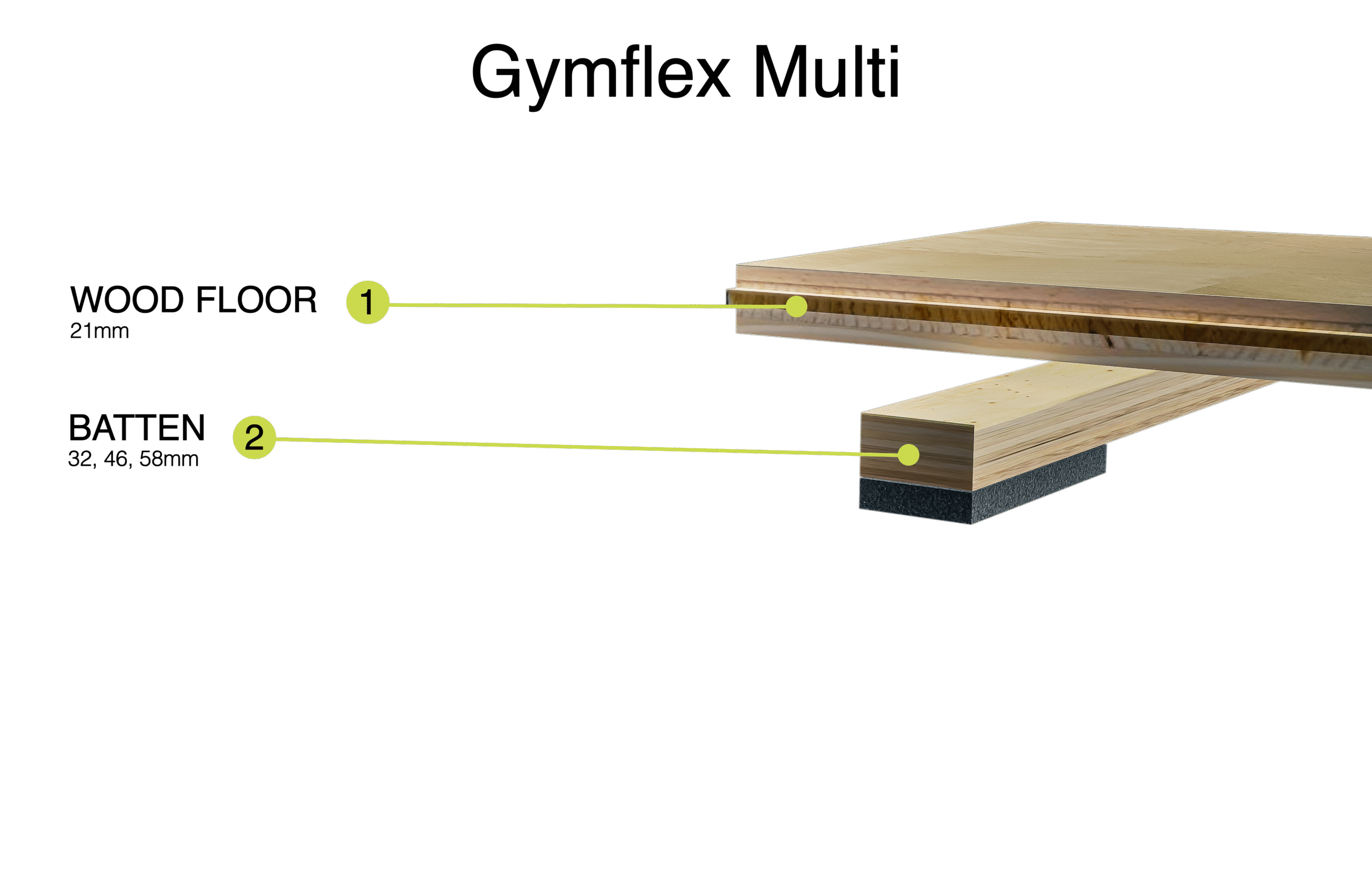

GYMFLEX MULTI LAYERED FLOOR FINISH OPTIONS
Request a Quote
Requst a free sample of GYMFLEX MULTI
Datasheets and Specifications
New Era Floor Systems LTD | Overview | NBS Source
Video Showcase

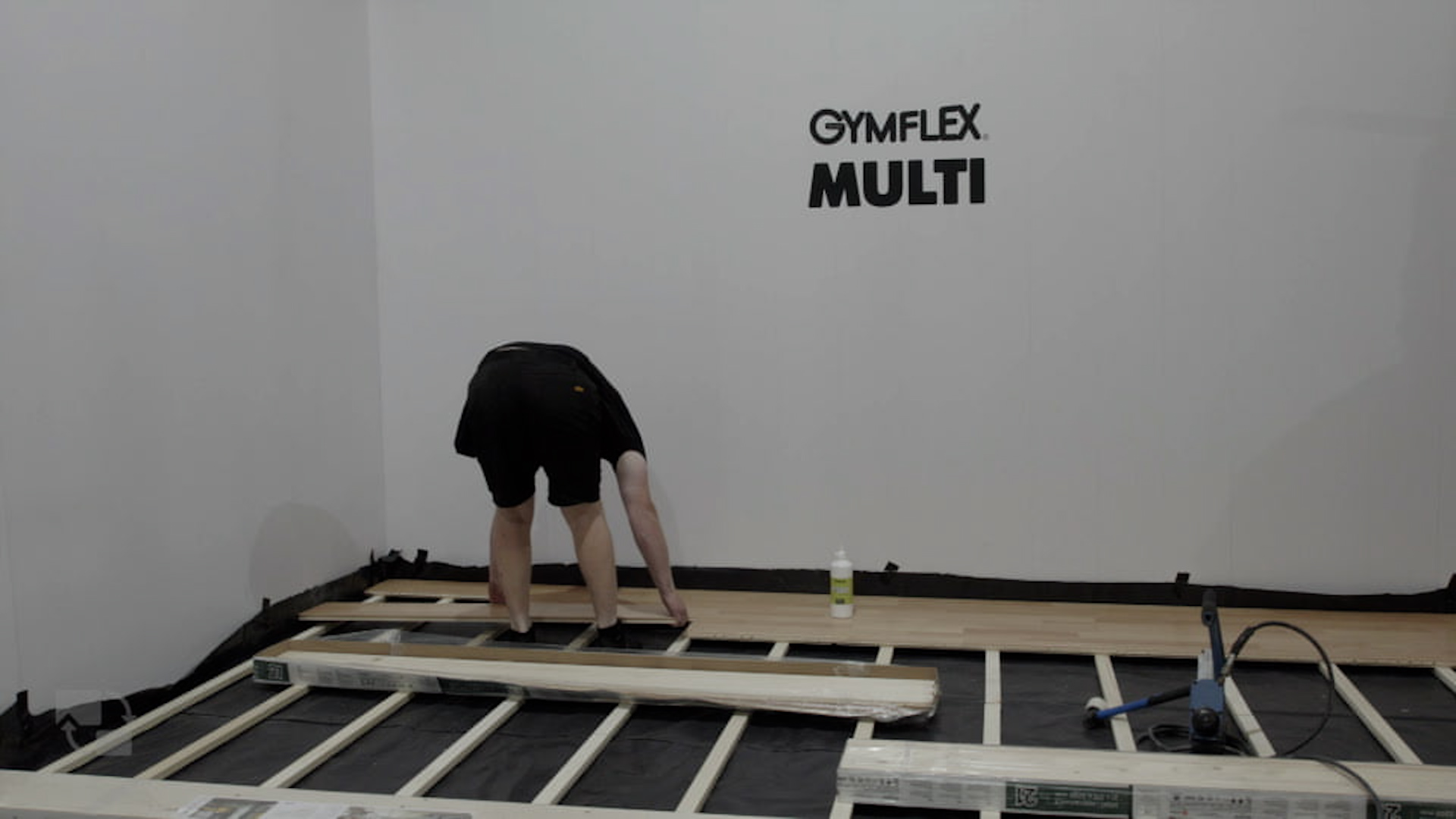

How to install the GYMFLEX MULTI system
Download the detailed instructions to install this system
