Product Overview

GYMFLEX CARDIO

Our Cardio floor system is a specialised high Performance Rubber surface to support and enhance Cardio workouts. It’s designed to provide a safe, comfortable, and durable foundation for equipment like treadmills, Exercise bikes, and rowing machines, as well as for bodyweight cardio exercises like jumping jacks and burpees. Unlike general-purpose flooring, cardio gym flooring focuses on specific characteristics crucial for repetitive, high-impact movements and heavy equipment. The system is built using the New Era Acoustic Cradle System to enhance impact sound reduction, making it an ideal solution for upper-level gym where Acoustics are vital.

Key Features and Benefits

  • Recycled Interlocking Rubber Tile 20mm
  • Adjustable heights 90-338mm
  • Acoustic Isolation
  • Ideal for fitness machines and light impact use
  • Excellent shock absorption

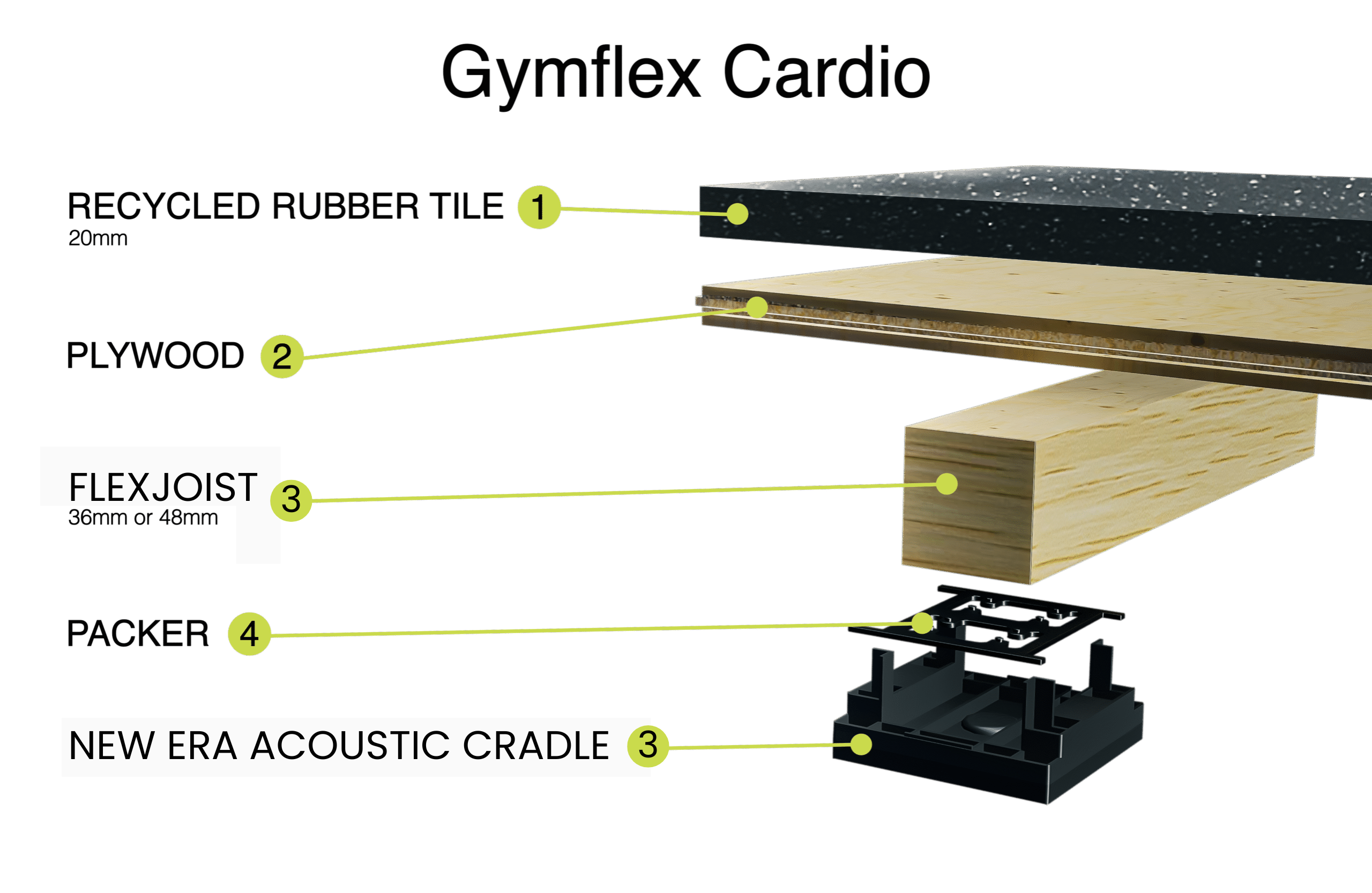

Floor FinishRecycled Rubber tile 20mm
ColourBlack/15% grey fleck
Structural Layer18mm T&G Plywood
UsageFitness Studio/Cardio
CradlesNew Era Acoustic*
Flexjoists36 or 48mm Flexjoists**
Floor Heights90-338mm
Flexjoist Centres300mm
Cradle Centres (Along Batten)450mm (36mm Flexjoist), 600mm (48mm Flexjoist)
Acoustic Reduction29db
Loading500kg per m2 Static Load & 350KG point load
*Cradle Calculations: 17.0 per m2 (36mm Flexjoist) 14.0 per m2 (48mm Flexjoist)

**Flexjoist Calculations: 4.0 per m2

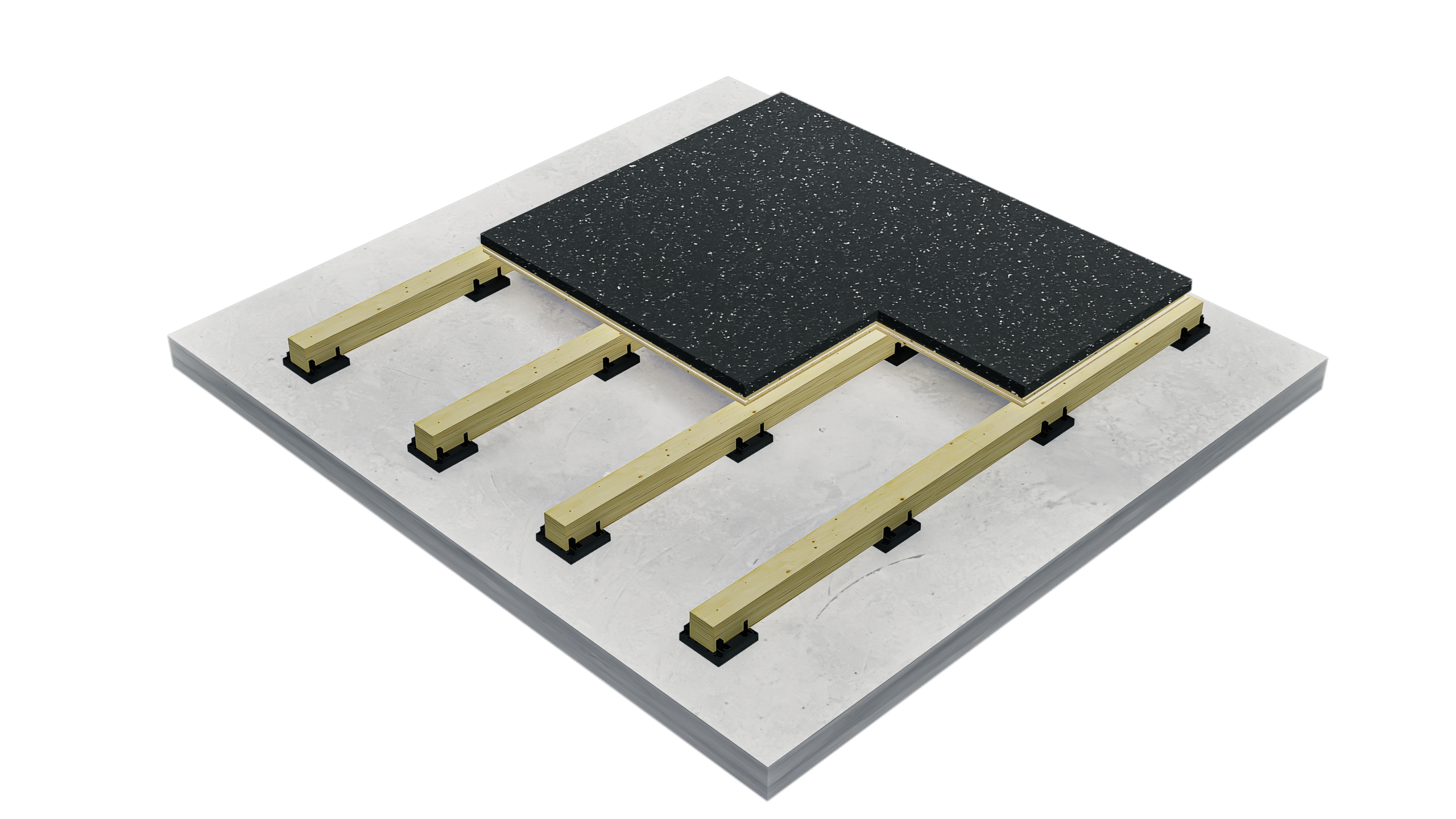

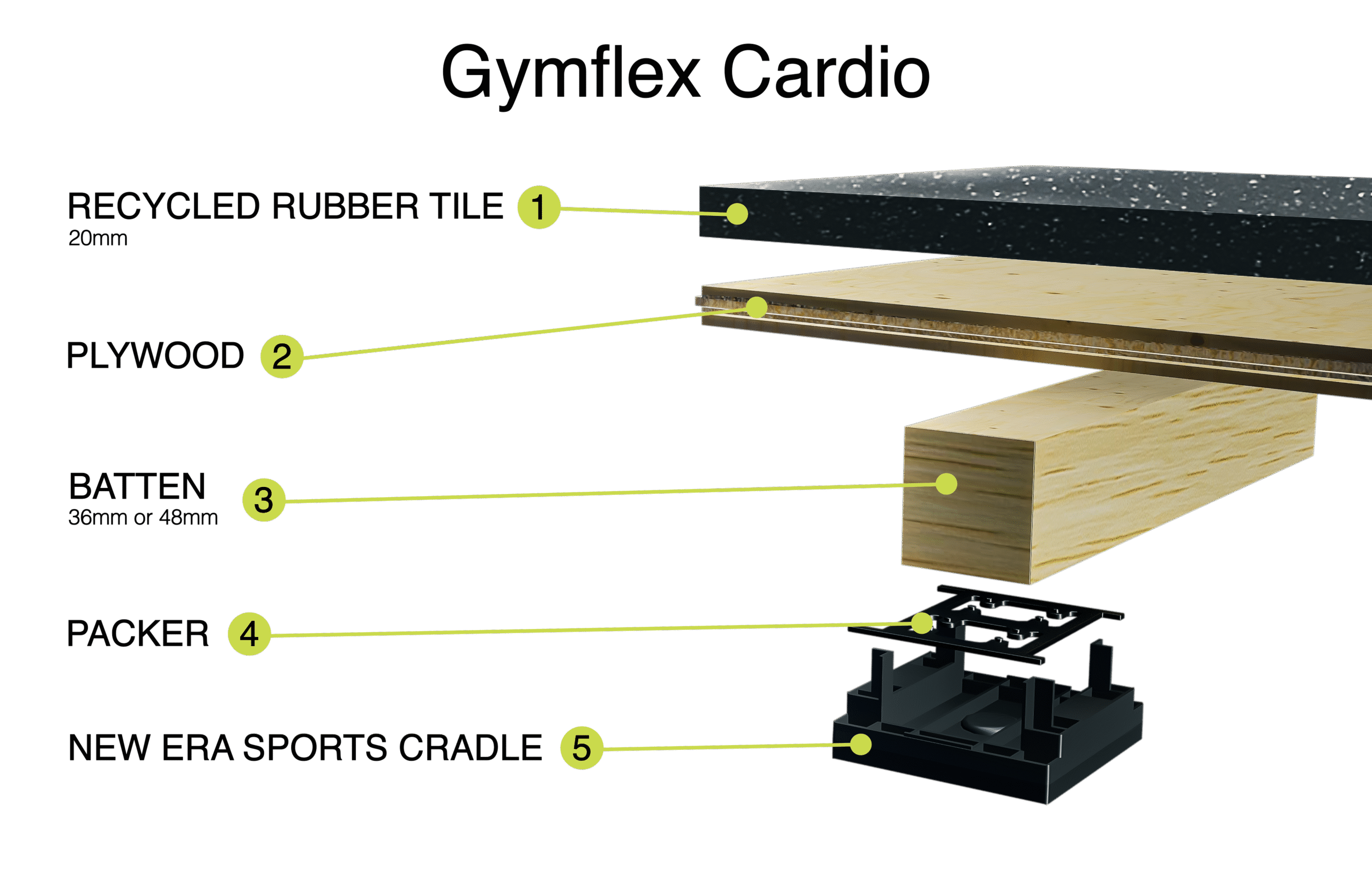

3D Model of GYMFLEX CARDIO flooring and cradles

Request a Quote

Choose your floor height

90 mm

Log in to assign this to a project (optional).

Number of metres required (whole m²)

Requst a free sample of GYMFLEX CARDIO

Datasheets and Specifications
New Era Floor Systems LTD | Overview | NBS Source
Video Showcase

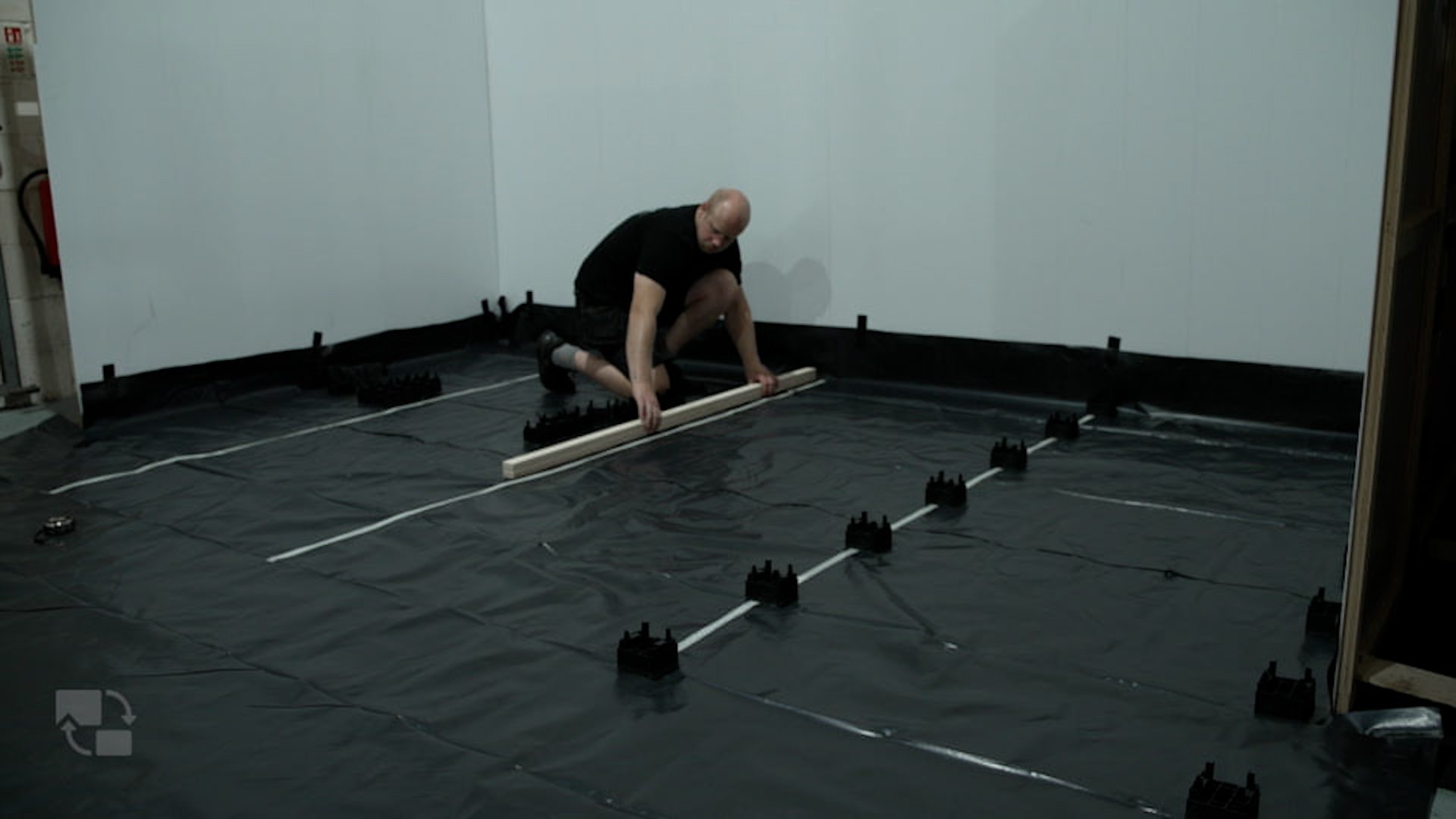

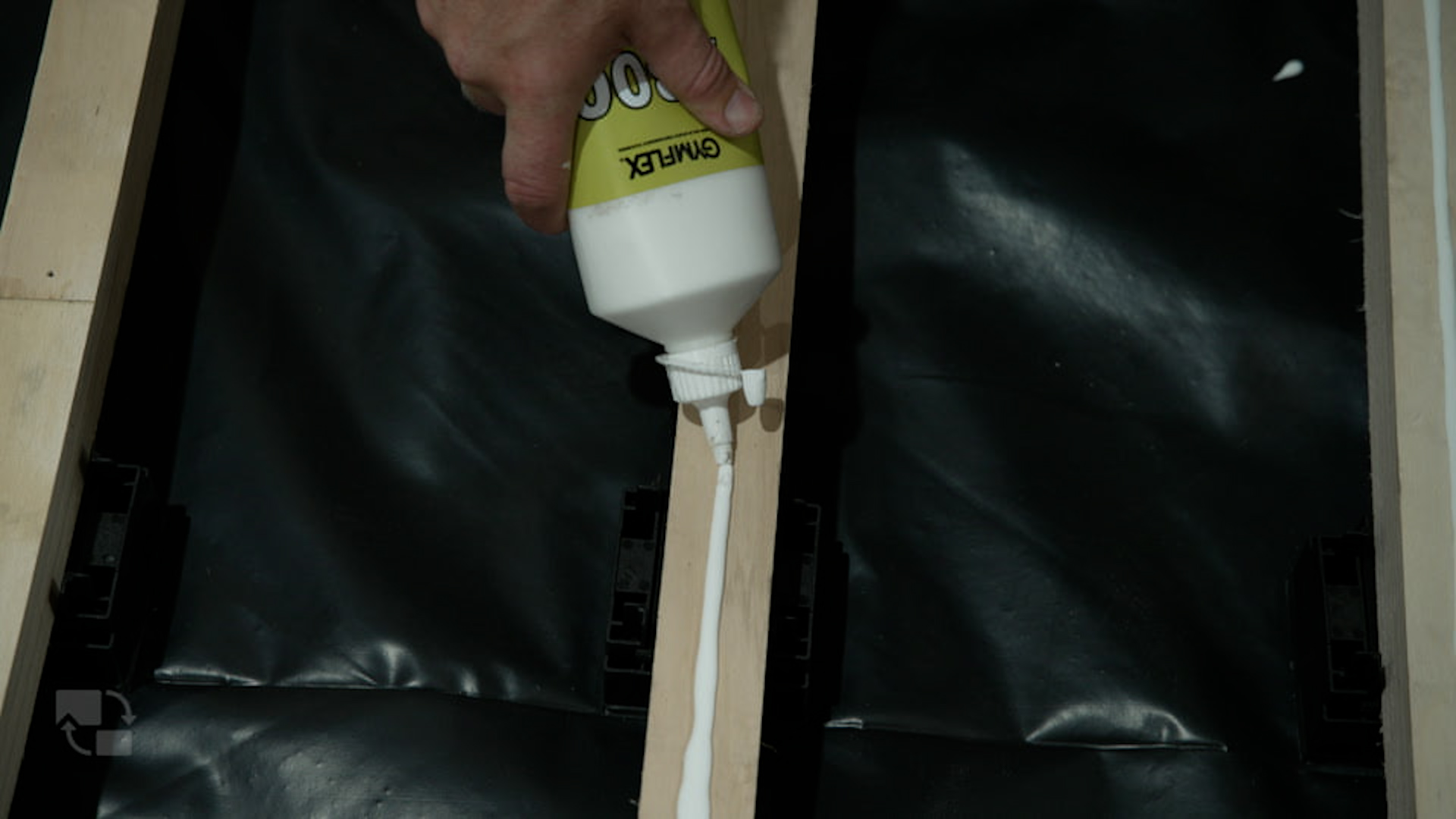

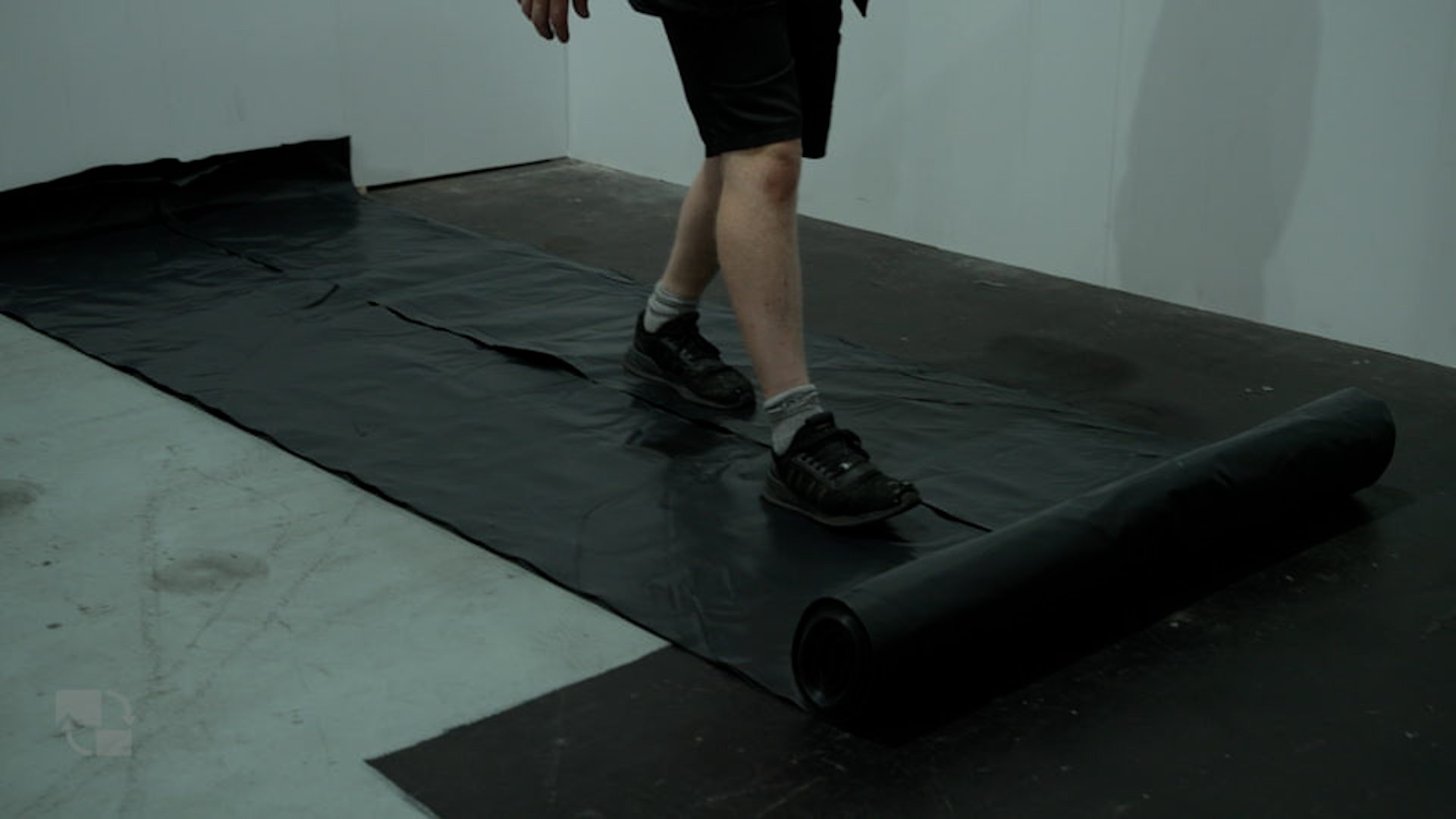

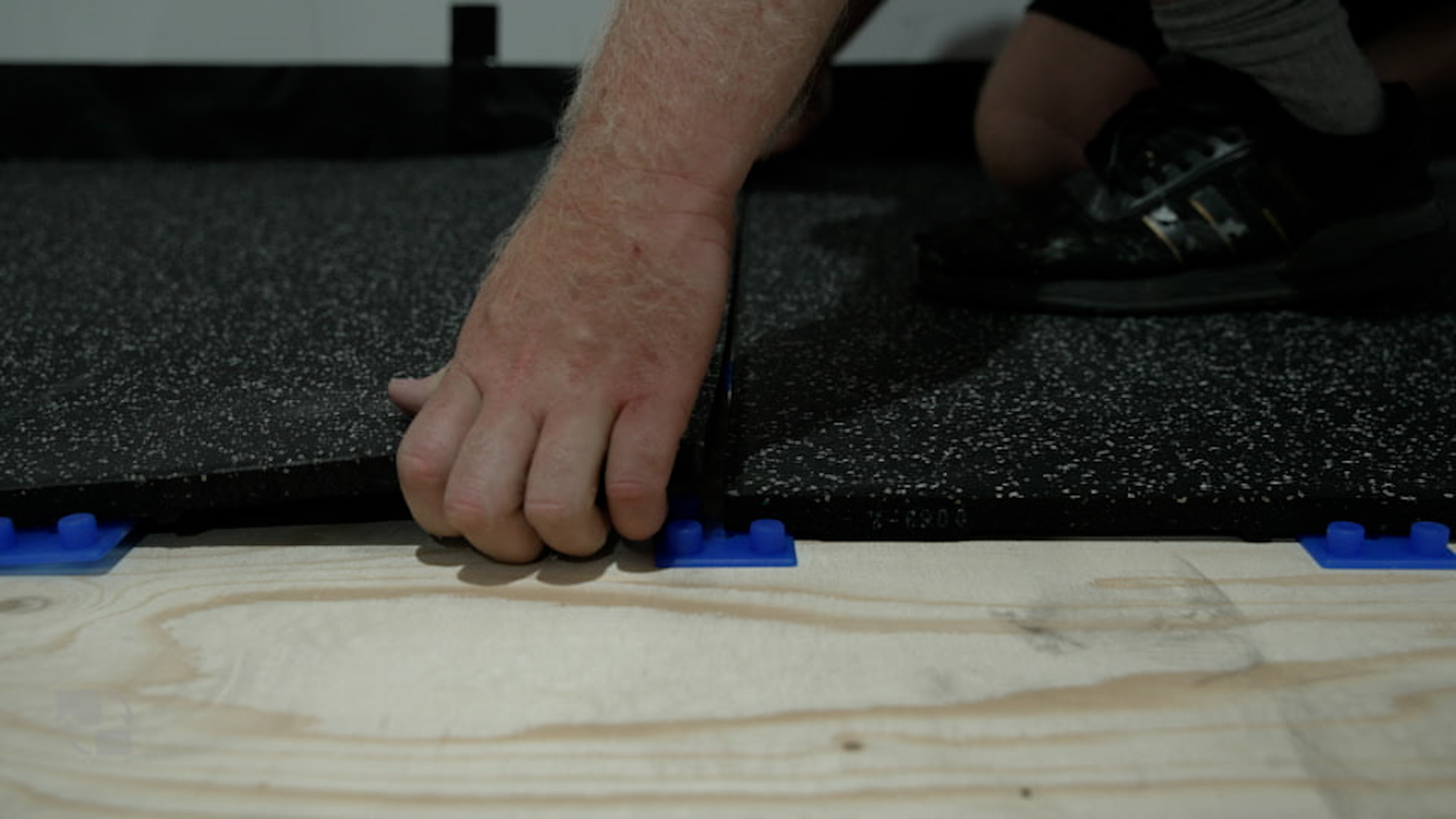

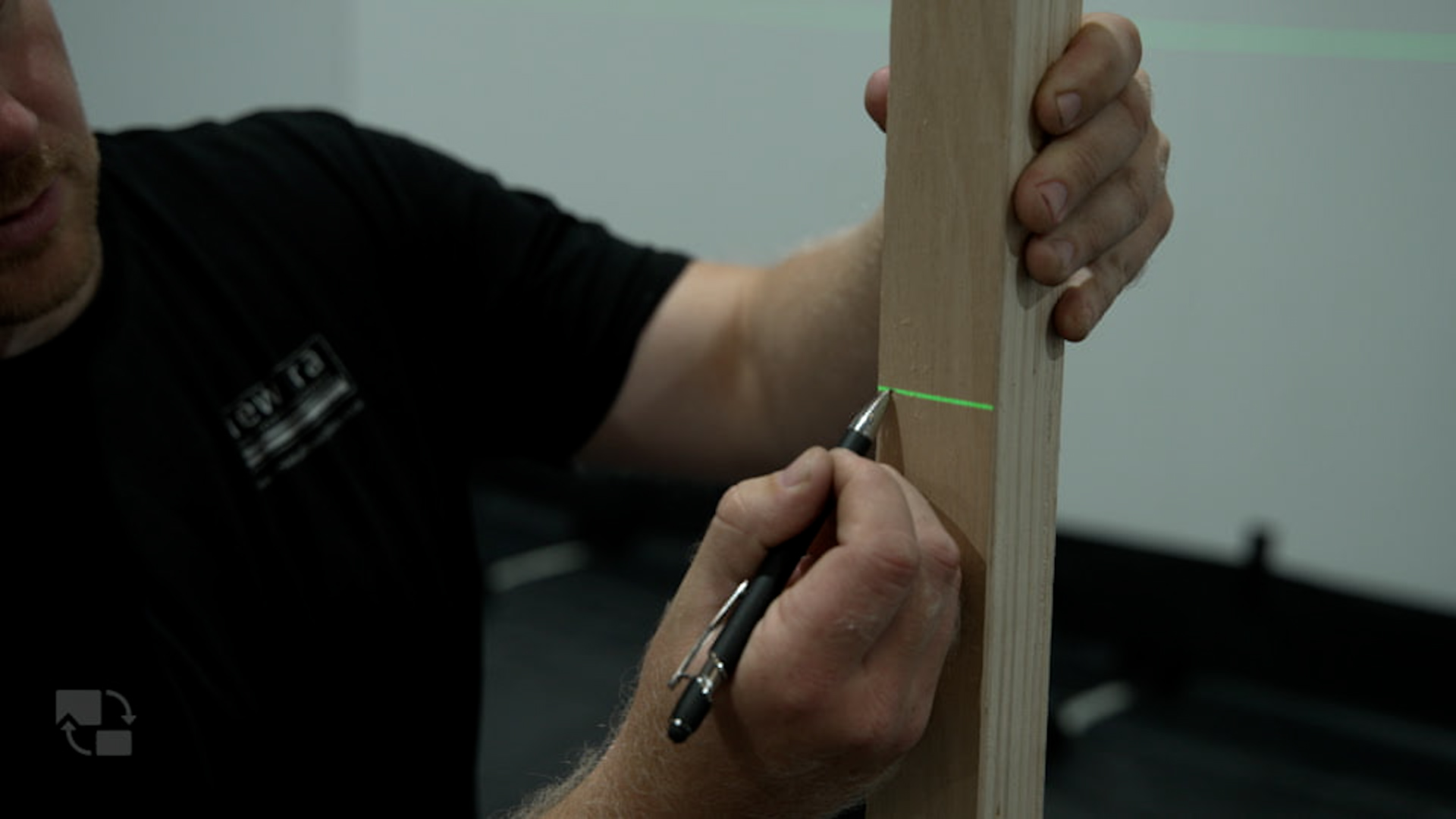

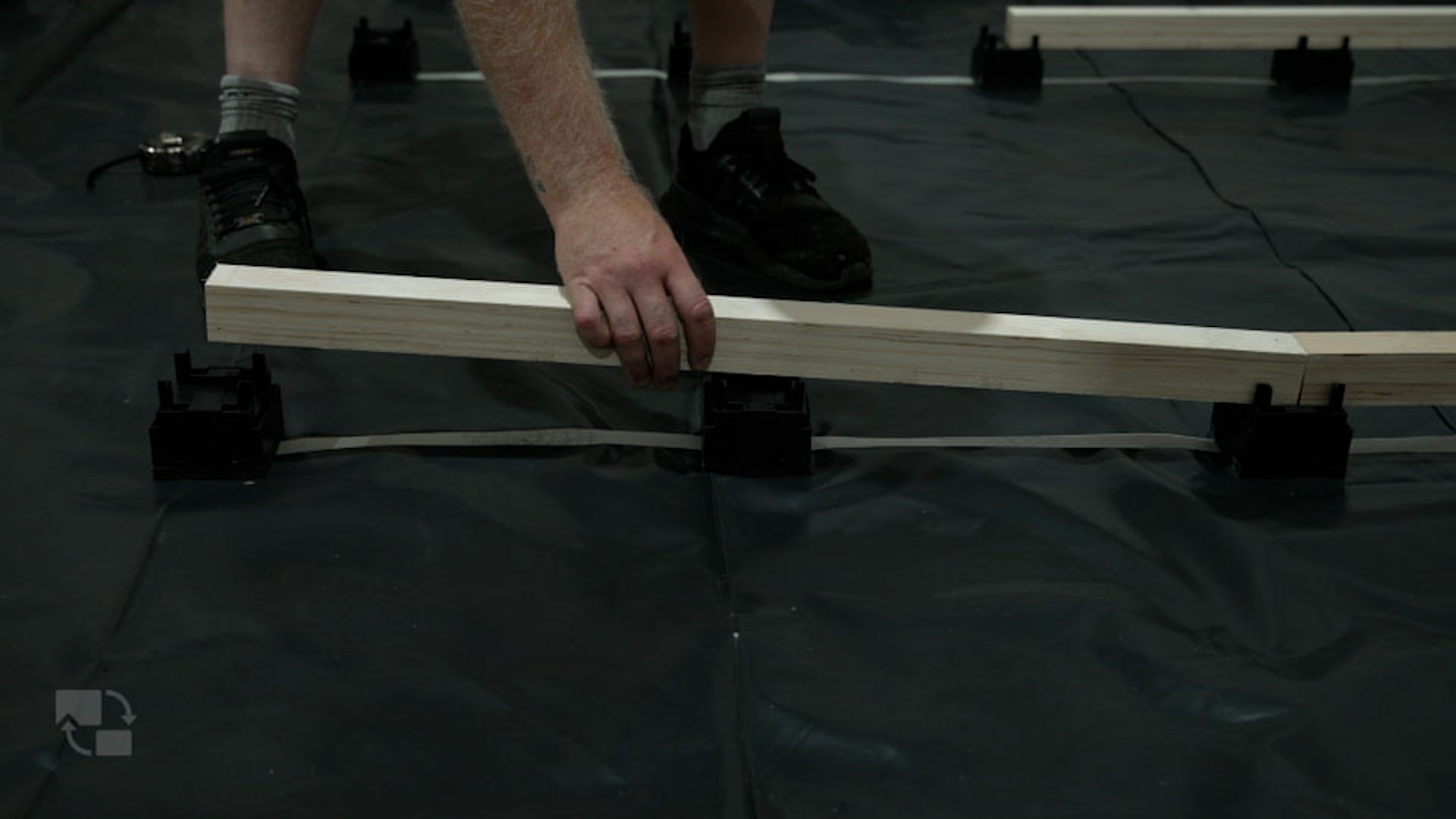

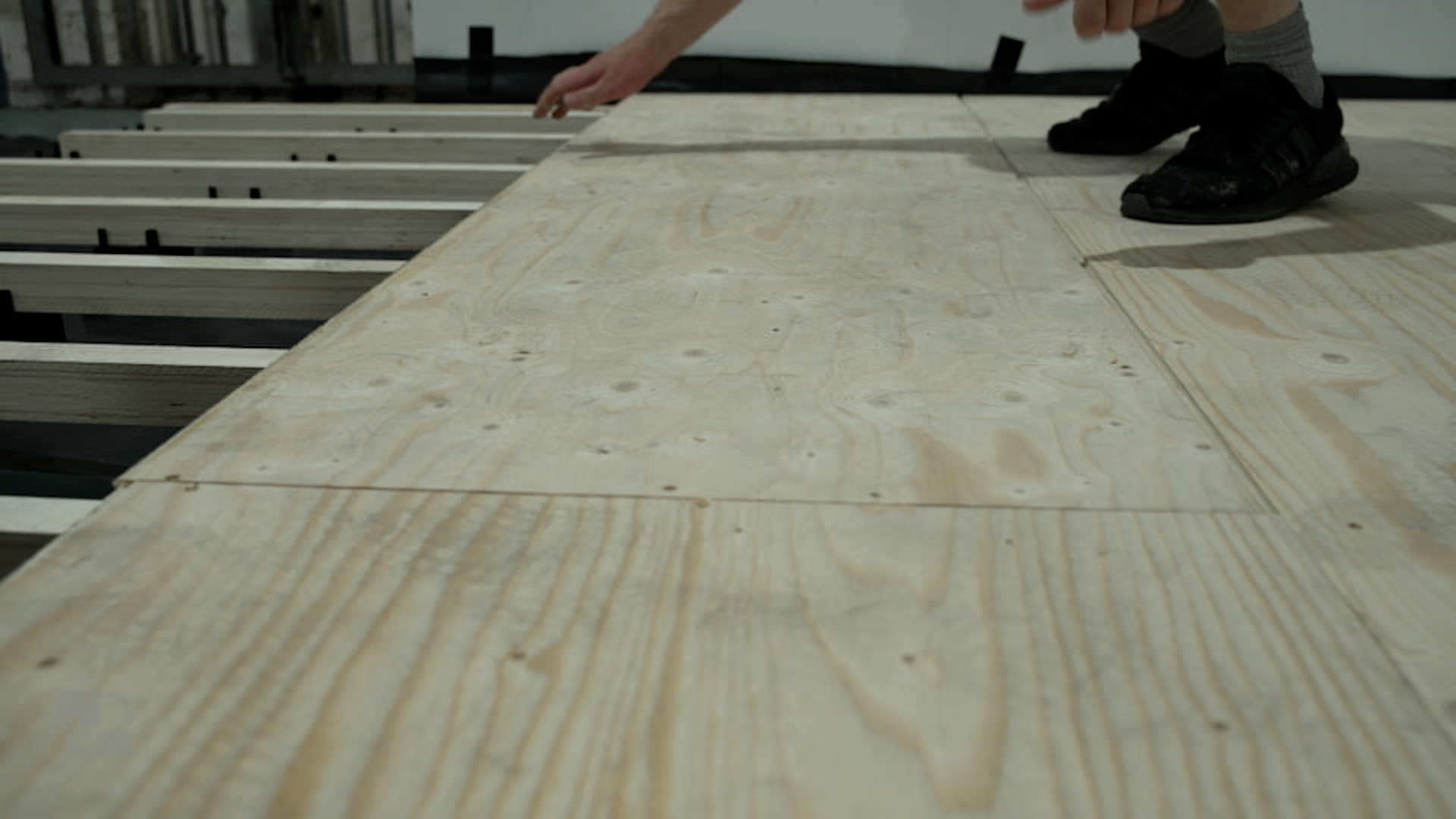

How to install the GYMFLEX CARDIO system

Download the detailed instructions to install this system

Video Showcase

How the cradle and batten systems works?
