Components
Acoustic Cradles
New Era Acoustic Cradles offer a high performance of impact sound isolation up to 28db reduction on sound transfer when used on upper floors, making this cradle perfect for new build or renovation projects.
- In the Club
- 10 products
- Used in
- 5 systems
In detail

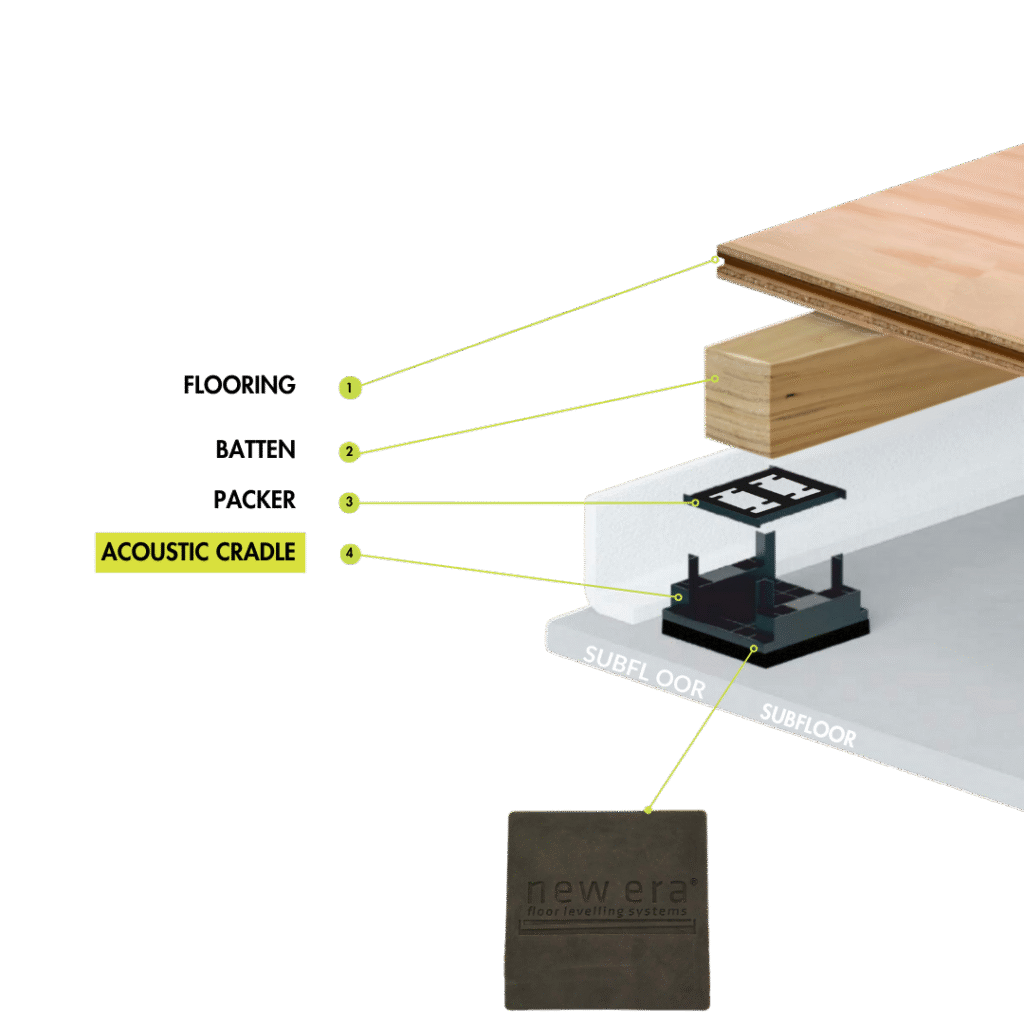

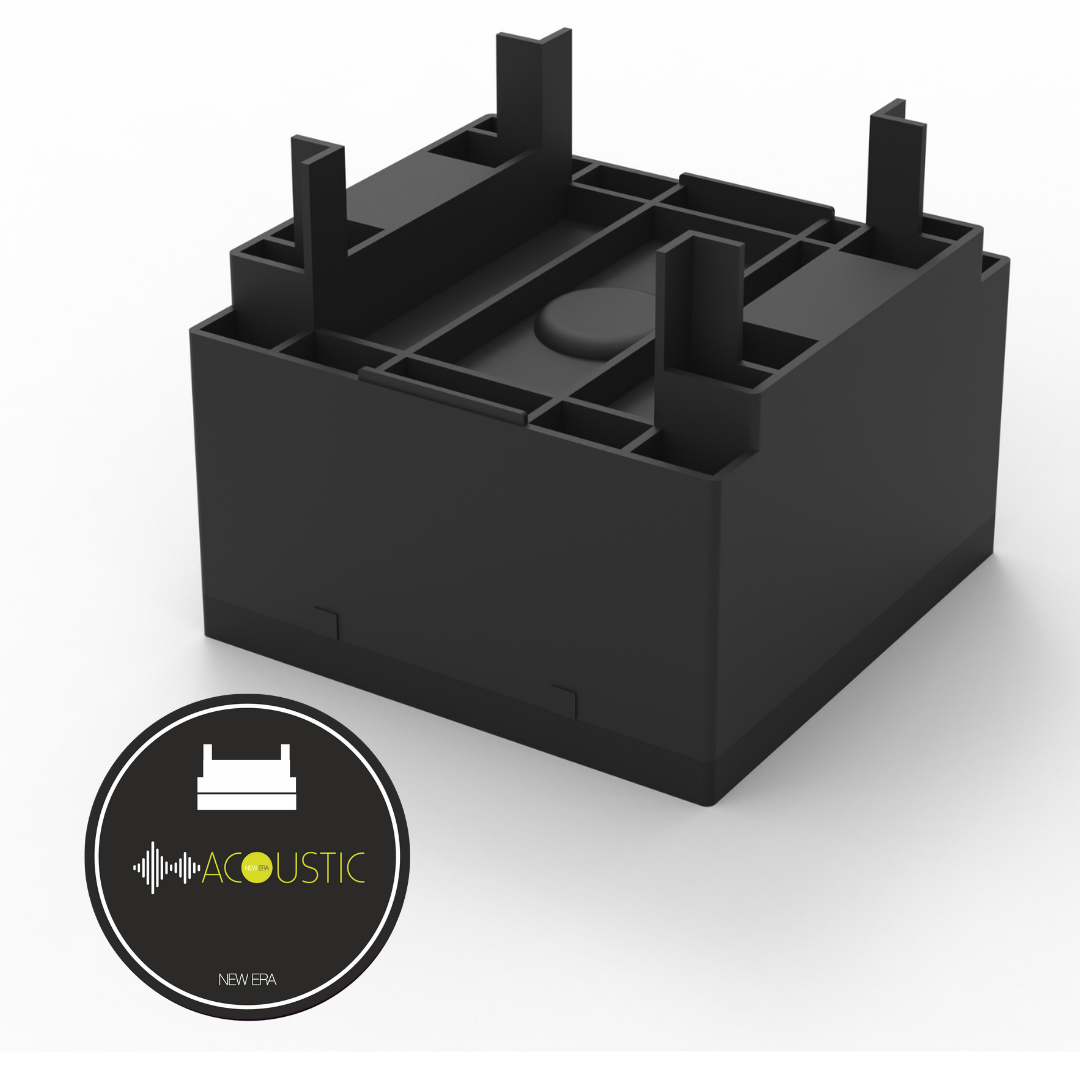

About Acoustic Cradles
New Era Acoustic Cradles deliver high-performance impact sound isolation, achieving up to 28dB reduction in sound transfer when installed on upper floors. This makes the system ideal for both new build and refurbishment projects.
The unique New Era rubber isolation pad is engineered to support high loads while minimising vertical deflection, making it particularly suitable for areas with increased load requirements.
The system has been extensively tested at the AIRO laboratory and complies with Part E regulations and Robust Detail FFT2 (Resilient Cradle & Batten System).
Buy online
Sizes in the New Era Club
The Acoustic Cradles range as it is sold and delivered, with prices including VAT.
10 products
-
Cradles
16/30mm Acoustic Cradles (Box 180)
£142.70 inc VAT
-
Cradles
45/60mm Acoustic Cradles (Box 120)
£129.50 inc VAT
-
Bases & Spacers
55mm Acoustic Bases (Box 120)
£122.00 inc VAT
-
Cradle Tops
6/20mm Tops (Box 540)
£148.59 inc VAT
-
Cradle Tops
35/50mm Tops (Box 180)
£94.50 inc VAT
-
Bases & Spacers
45mm Spacer (Box 270)
£104.50 inc VAT
-
Packers

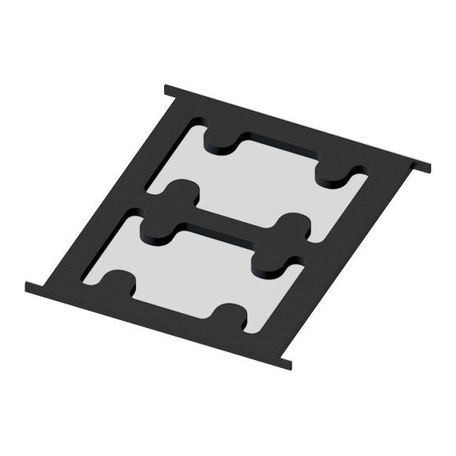

New Era 1.5mm Packer (300 per bag)
£15.00 inc VAT
-
Packers

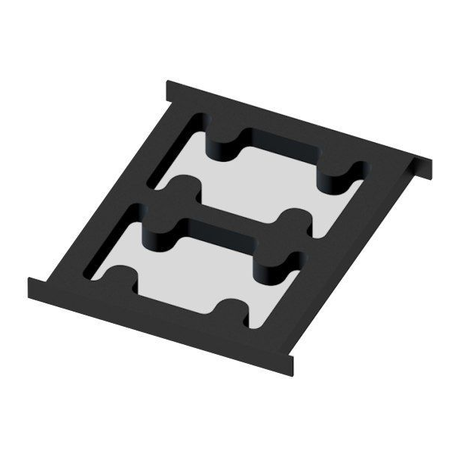

New Era 3mm Packers (300 per bag)
£19.00 inc VAT
-
Packers

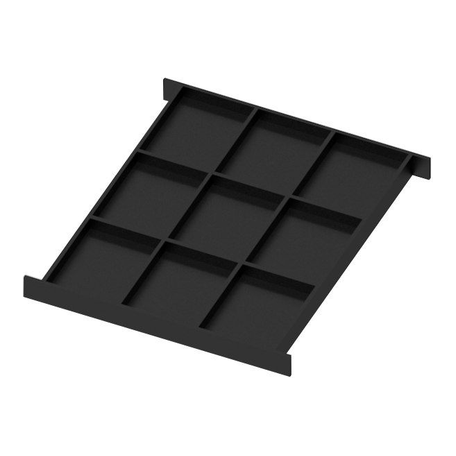

New Era 6mm Packer (150 per bag)
£12.20 inc VAT
-
Packers

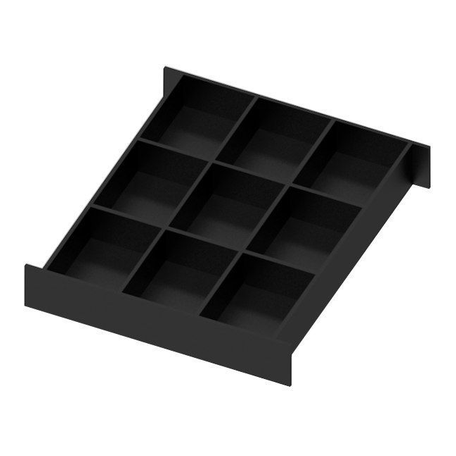

New Era 12mm Packer (100 per bag)
£10.00 inc VAT

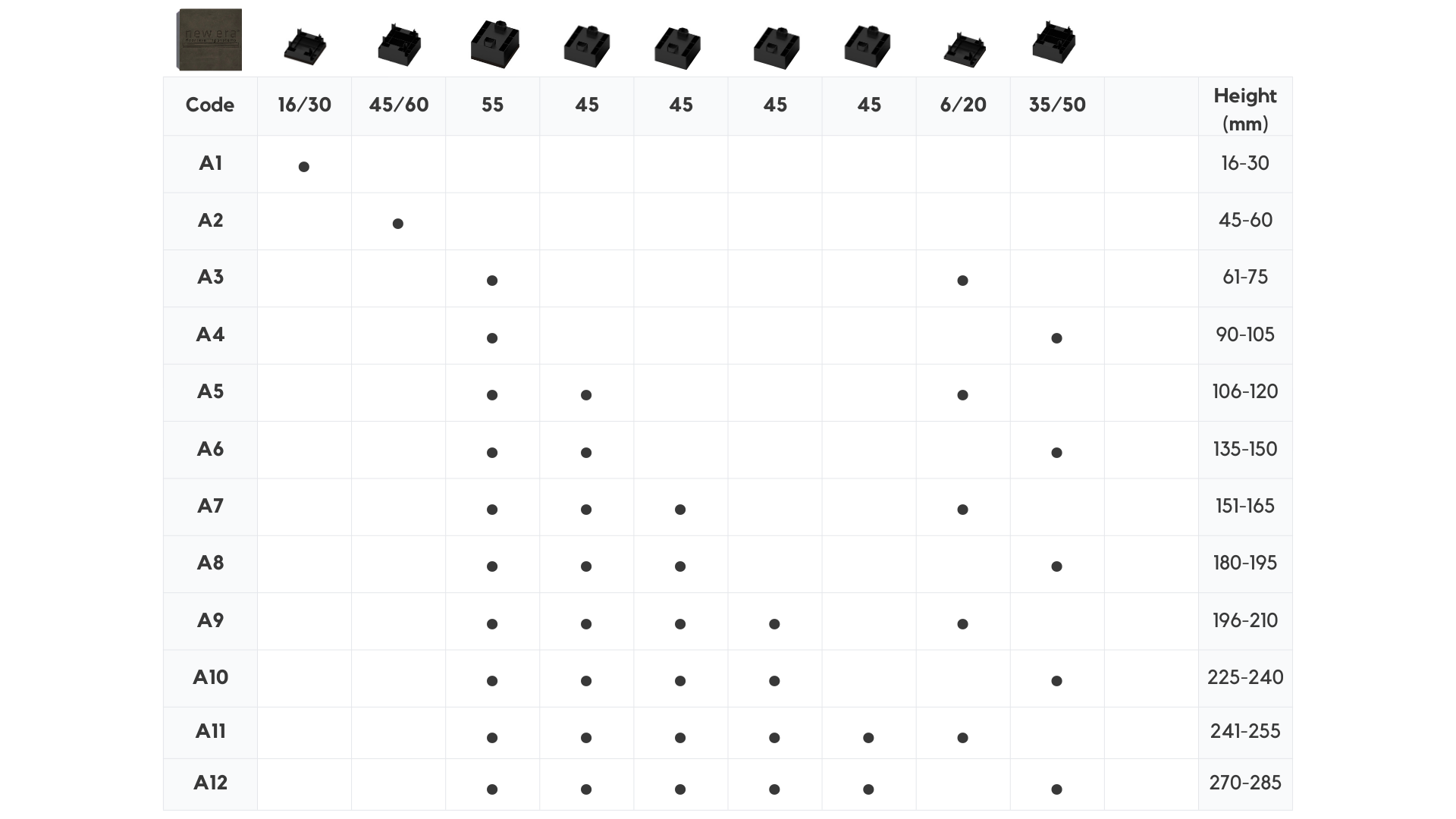

Heights
A combination for every height
Acoustic Cradles come in a range of sizes. Find the finished height you need in the table to see which parts make it up.
At a glance
Key features and benefits
-
High performance sound insulation
Provides up to 28 dB reduction in sound transfer on upper floors.
-
Ideal for multiple applications
Perfect for both new build projects and renovations.
-
Durable isolation pad
Features a recycled rubber pad that offers excellent load-bearing capacity for all surfaces.
-
Versatile use
Suitable for floors under free weights or general use areas.
-
Tested performance
Extensively tested at the AIRO laboratory for impact sound insulation.
-
Certified compliance
Meets Robust Detail Handbook FFT2 Resilient Cradle and Flexi-Joist system requirements.
Is Acoustic Cradles right for you?
