Product Overview

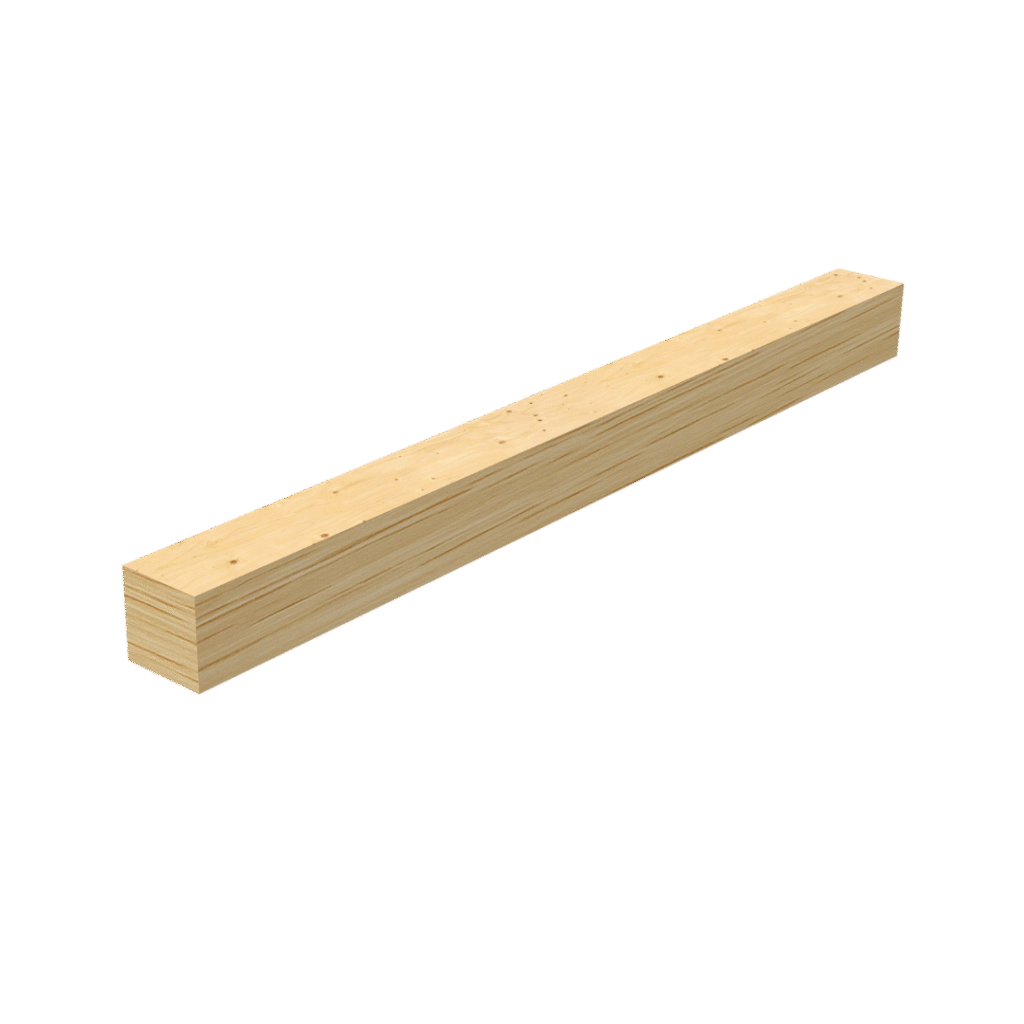

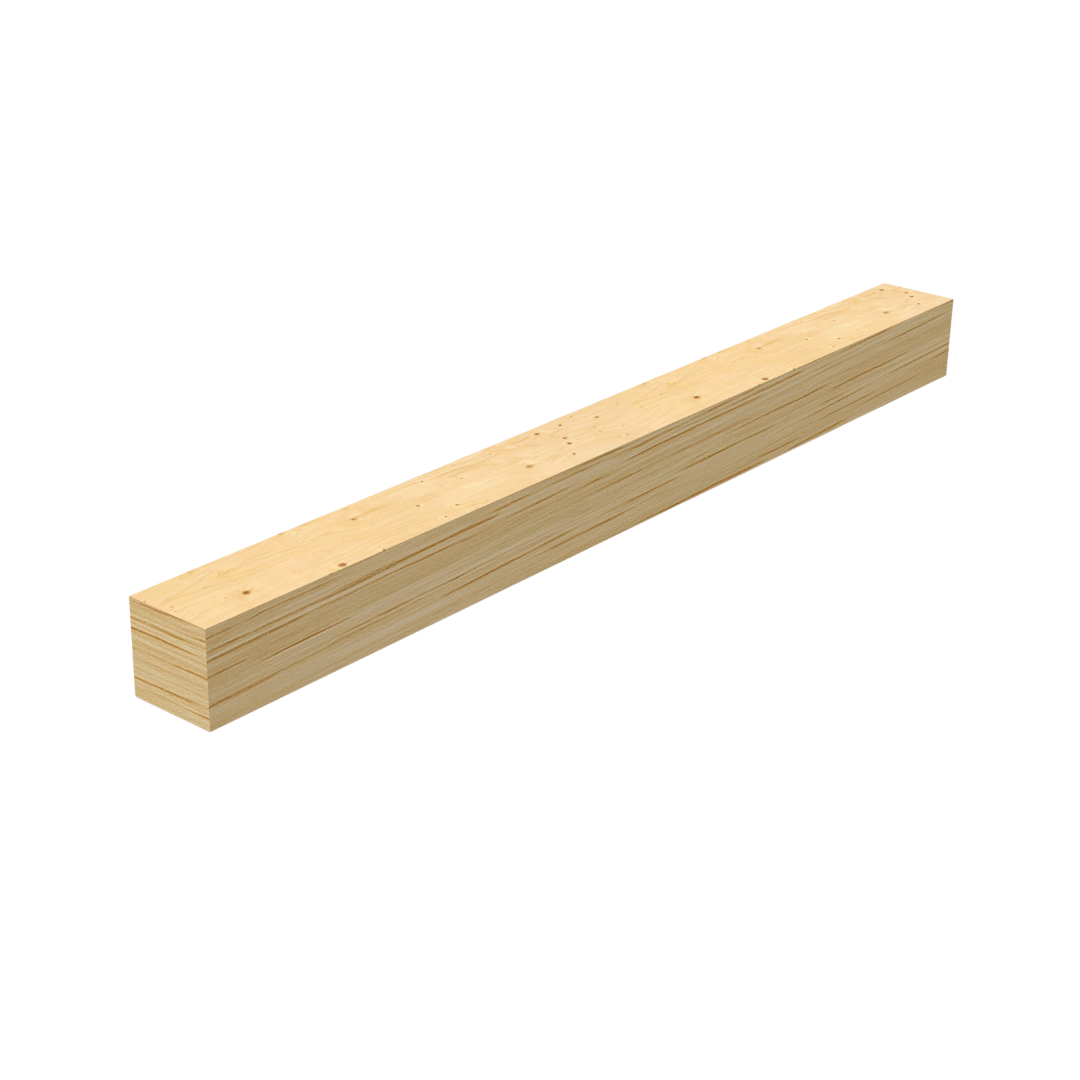

Laminated Flexjoist
New Era LVL laminated Flexjoists are unique and specially manufactured from poplar plywood to add to the Performance of the cradle system. Available for the sports range in 36,48 & 63mm thickness, the Flexjoists have no weaknesses from knots or imperceptions and will not twist or warp in use.
Key Features and Benefits
- High strength-to-weight ratio – 540kg/m³ density with bending strength up to 60 N/mm² and MOE up to 10,000 N/mm² provides strong, stiff sections without excessive weight.
- Reliable structural performance – good bending, tension (25 N/mm²) and shear strength (2.8 N/mm²) make it suitable for demanding load-bearing applications.
- Consistent, precise sizing – standard depth options (22, 36 & 48mm) and 45mm width allow easy design, detailing and repeatable installation.
- Dimensional stability – controlled moisture content of 8–10% reduces risk of warping, twisting or shrinkage on site.
- Low emissions – E1 emission rating supports healthier indoor environments and compliance with strict building standards.
- Efficient logistics – high pallet quantities (up to 1,125 pieces of 22mm) maximise transport efficiency and reduce handling time on site.
Laminated Flexjoists come in a variety of sizes depending on your required height
Is Laminated Flexjoist right for you?

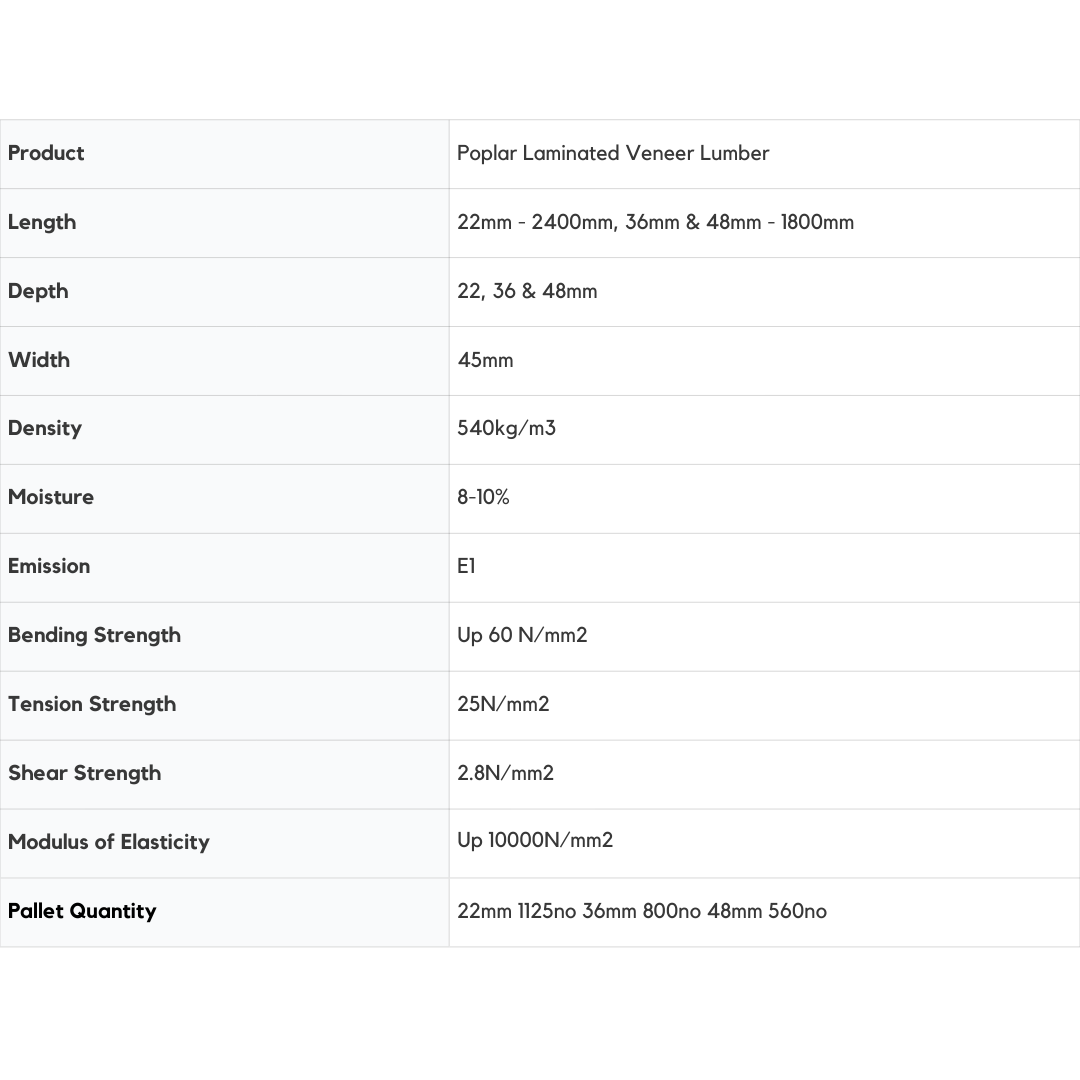

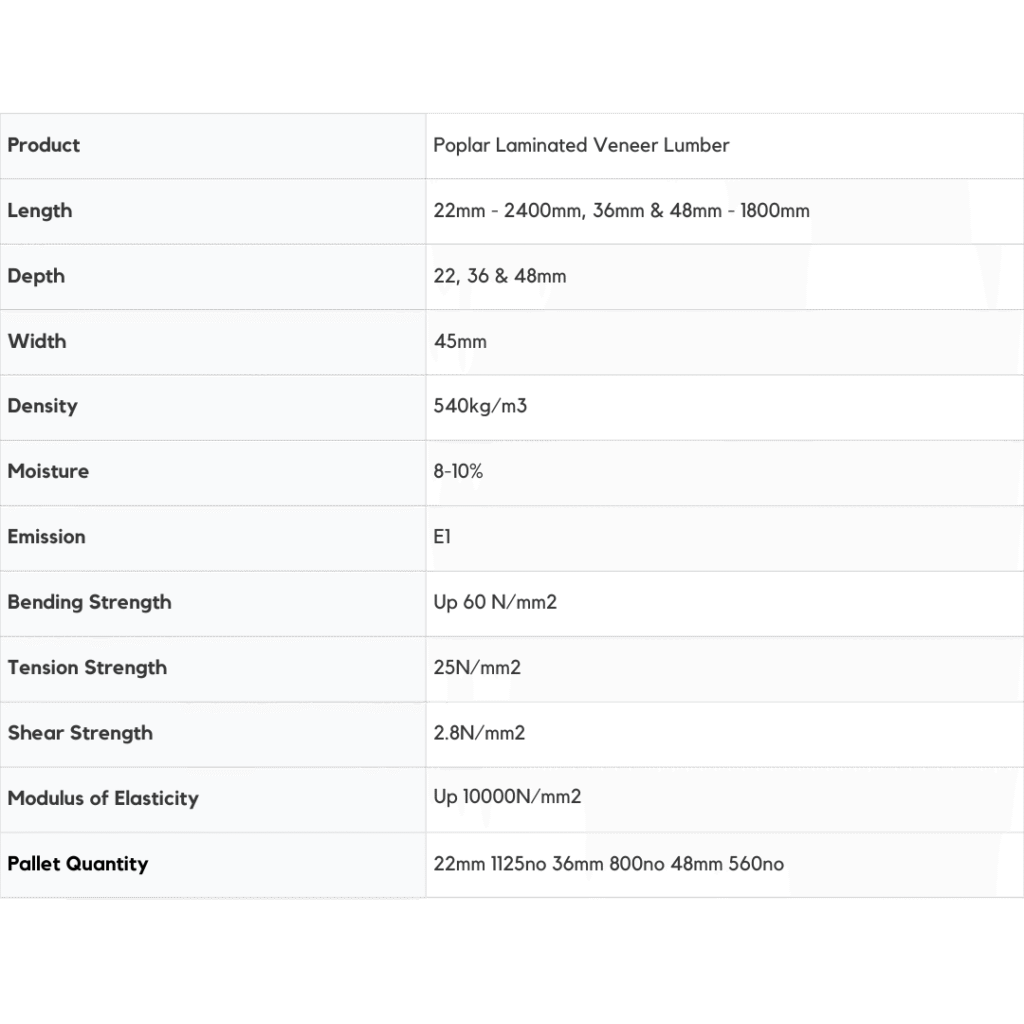

Datasheets and Specifications
