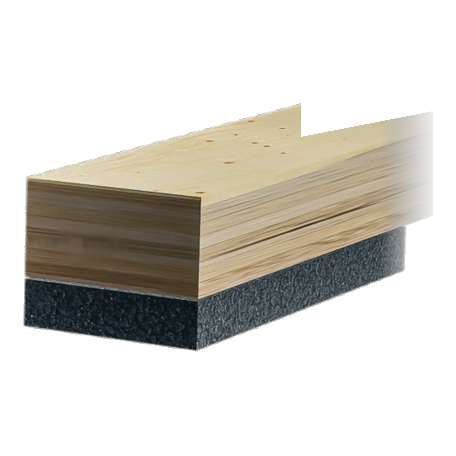

Gymflex Multi batten laminated to its resilient pad

New Era Club Battens

Gymflex Multi Batten 32mm x 2400mm

The shallowest Multi batten, 32mm deep in a 2.4 metre length. The long section means fewer joints across a floor, and the shallow depth keeps the finished height down where there is a threshold or a door to work to.

Delivered as
Each
Weight
1.35 kg
Used in
1 system
Size
2400 x 45 x 32mm
Price£4.78 inc VATSKU: NE-MULTI-32

Out of stock

Quantity estimate

How many do I need?

Choose the system you are building and the size of the floor. The count uses the same rates as our system quotes, rounded up to whole battens.

Rate by system
Gymflex Multi 1.4 battens per m²

System Gymflex Multi

140 battens

1.4 battens per m²

£669.20 inc VAT at today’s price

Quote the whole floor

An estimate for this part only. A system quote prices every layer of the floor for your area.

Where it sits

Inside the floor, layer by layer

Highlighted: the battens layer of a Multi floor. Hover or tap a layer to find it in the section, and follow the links to the parts that sit around it.

Section through the floor build-up01020304050607
Schematic section, not to scale.
  1. Finish The surface on top: sports vinyl, rubber tiles or hardwood.
  2. Deck Plywood or boards, fixed across the battens.
  3. Battens This product Span between the supports and carry the deck.
  4. Resilient pad Lies under the batten in place of a cradle.
  5. Membrane 1000 gauge polythene, the first layer down. New Era 1000 Gauge Polythene Roll
  6. Substrate The concrete or timber sub-floor.
  7. Flanking strip Keeps the floating floor off the wall. New Era Perimeter Flanking Strip

In detail

What it does

The Multi system is the budget end of the Gymflex range: a batten laid directly on a resilient pad rather than a full cradle assembly, which keeps the build-up shallow and the cost down where a sprung sports floor would be more than the room needs.

At a glance

Key features and benefits

  1. Shallowest Multi batten

    32mm, for tight finished heights.

  2. Longest in the Multi range

    2.4 m, fewer joints across the floor.

  3. A simpler build-up

    Batten on resilient pad, no cradle assembly.

  4. Lower cost per square metre

    Where a full sprung floor is more than the room needs.

System compatibility

Compatible systems

Explore the systems this component can be used in.

01 compatible system

Complete the build-up

The parts around it

Is Gymflex Multi Batten 32mm x 2400mm right for you?

Enquire About This Product
Datasheets and Specifications
Datasheets
